Balluff BCS R08RRE-POM80C-EP00.3-GS75 Capacitive sensor
Balluff BCS R08RRE-POM80C-EP00.3-GS75 Capacitive sensor

Balluff BCS R08RRE-POM80C-EP00.3-GS75 Capacitive sensor

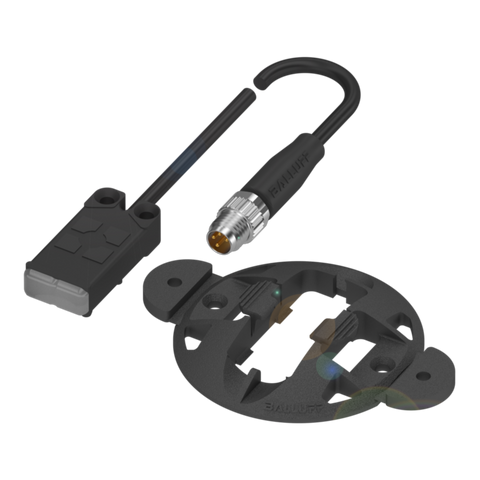

This capacitive sensor is designed for non-contact detection of various materials. It offers teachable switching points and flush mounting capabilities, with an adjustable sensing distance up to 8 mm. Its robust design provides IP67 protection, making it ideal for challenging industrial environments.
Vendor: Balluff
SKU: BCS012U
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This capacitive sensor is designed for non-contact detection of various materials. It offers teachable switching points and flush mounting capabilities, with an adjustable sensing distance up to 8 mm. Its robust design provides IP67 protection, making it ideal for challenging industrial environments.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripPP
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPP
SizeBlock style
Cable Length (mm)0.3mm
Cable Diameter (mm)3.4mm
Conductor Cross-section0.14 mm²
Connection Type4-pin
Tightening Torque0.2 Nm
Switching OutputPNP normally closed (NC)
Switching Frequency (Hz)50 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 12 - 30 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Rated Operating Current50 mA
Documents
Documents
x
Download Datasheet
