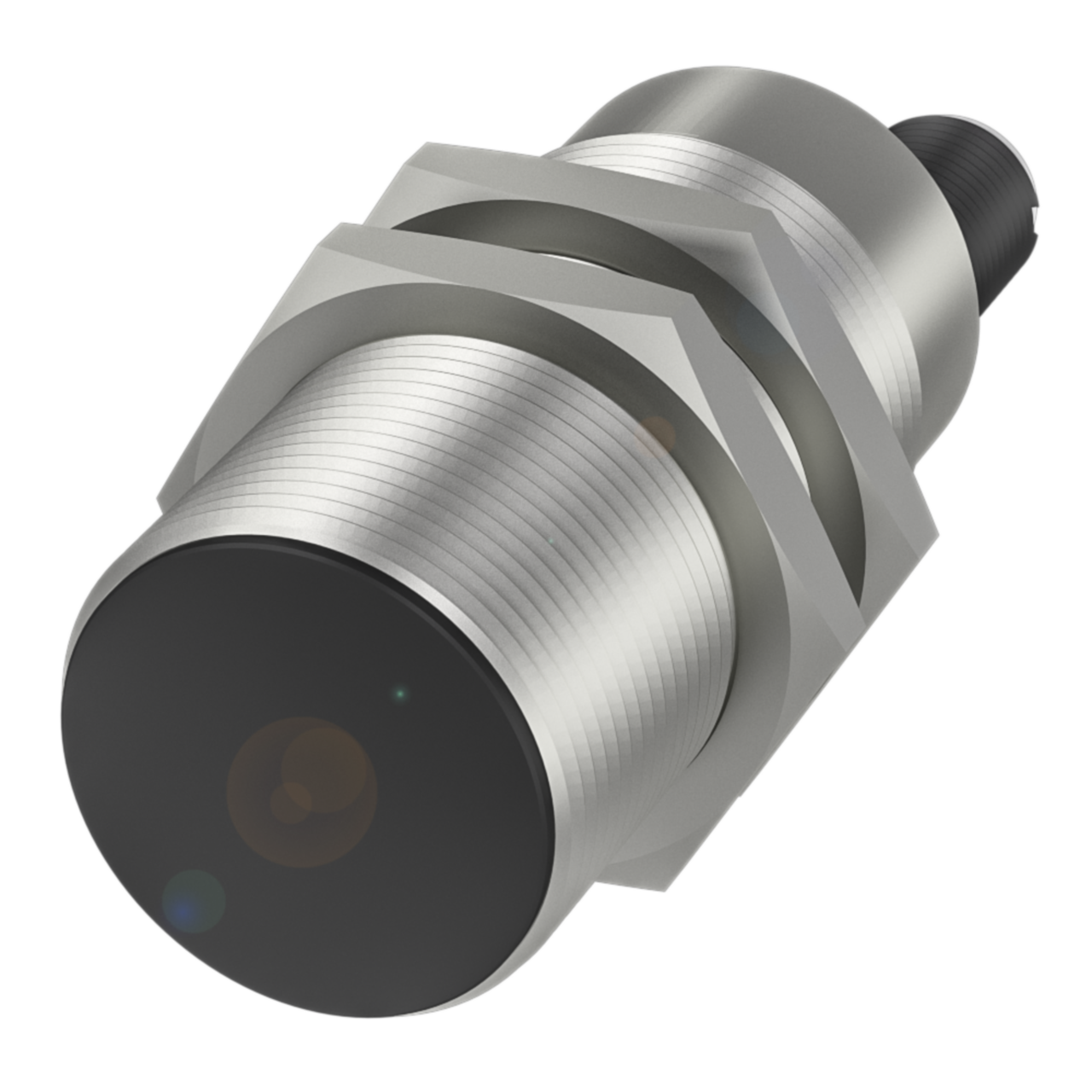

Balluff BCS M30B4I2-PSC15D-S04K Capacitive sensor for object detection Part number BCS00MR

This M30x1.5 capacitive sensor detects the presence of objects without requiring physical contact, making it suitable for flush mounting in panels and machine frames where space around the sensor face is limited. It features a stainless steel housing and PBT sensing surface, with an IP67 rating for use in harsh industrial environments. The sensor provides a PNP normally open output, operates from 10-30 VDC, and connects via an M12x1 male 3-pin A-coded connector.

Key specifications

• IP rating: IP67
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
