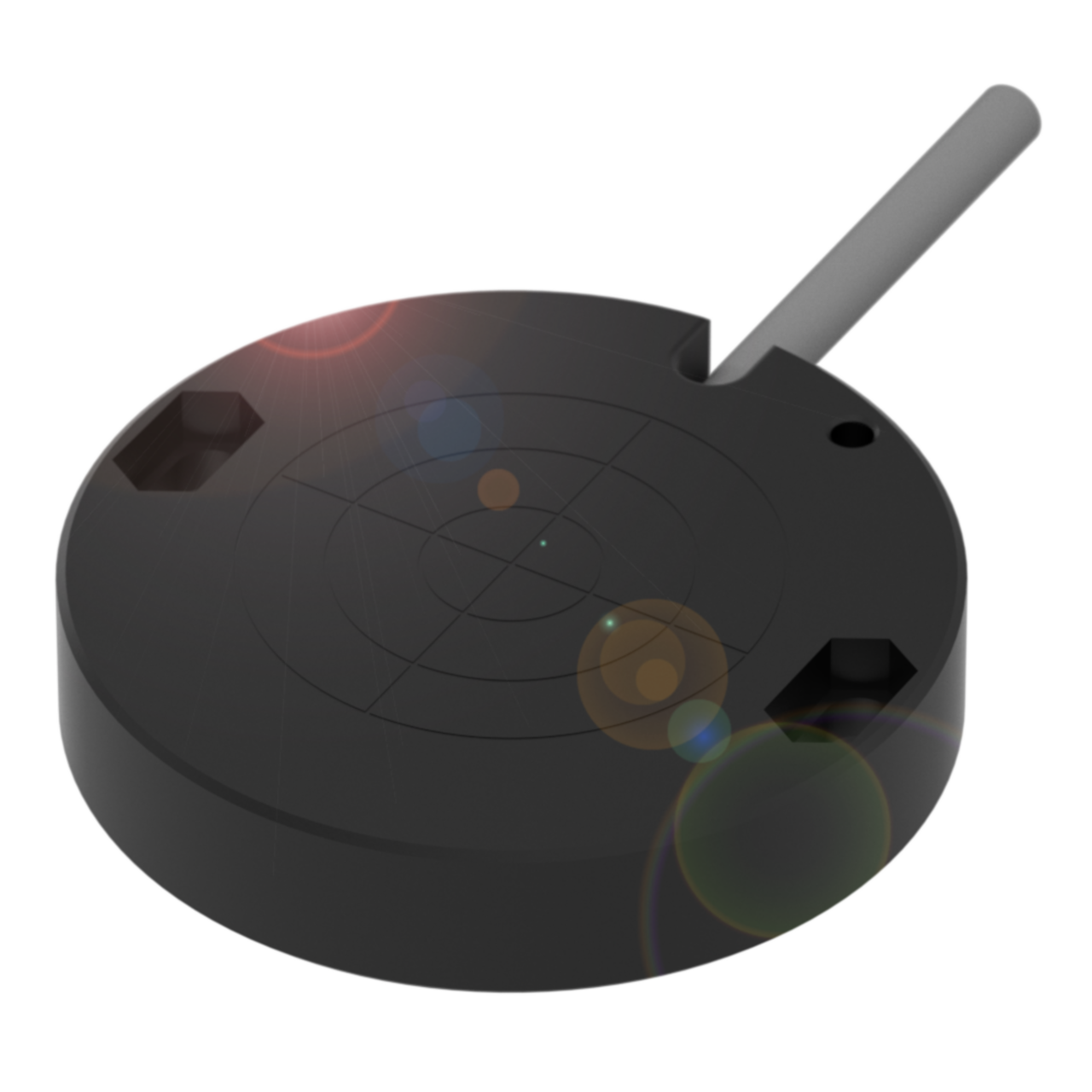

Balluff BCS D50OO04-PPCFAC-EV02 Capacitive level sensor
Balluff BCS D50OO04-PPCFAC-EV02 Capacitive level sensor

Balluff BCS D50OO04-PPCFAC-EV02 Capacitive level sensor Part number BCS0084

The Balluff BCS D50OO04-PPCFAC-EV02 is a capacitive level sensor. It operates from 10 - 35 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.Key specifications IP rating: IP67 Operating voltage: 10 - 35 VDC Rated voltage: 75 VDC
Vendor: Balluff
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

The Balluff BCS D50OO04-PPCFAC-EV02 is a capacitive level sensor. It operates from 10 - 35 VDC. The housing is rated IP67. Approvals: CE, UKCA, cULus, WEEE.

Key specifications

  • IP rating: IP67
  • Operating voltage: 10 - 35 VDC
  • Rated voltage: 75 VDC
Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE UKCA cULus WEEE / IEC 60947-5-2
Material: Housing / GripPOM
Material: Jacket / Cover NutPVC
Material: Sensing Surface / ContactsPOM
Part Depth (mm)10mm
Cable Length (mm)2 000mm
Part Diameter (mm)50mm
Switching Frequency (Hz)2 Hz
Rated Insulation Voltage75 VDC
Operating Voltage 10 - 35 VDC
Rated Operating Current100 mA
Documents
Documents
x
Download Datasheet
