Description

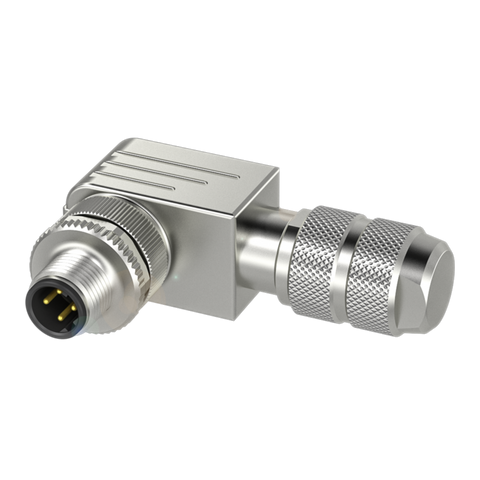

xThis is a field attachable connector featuring an M12x1, male, angled, 4-pin, D-coded termination with screw terminal connection, suitable for cable diameters between 5mm and 8mm. The die-cast zinc housing and cover nut, combined with an IP67 rating, suit installation in industrial environments requiring protection against dust and water ingress. Rated for 250 VDC/VAC at 4 A, it is typically used for field wiring of sensors and actuators in automation panels and machine builds.
Key specifications
- IP rating: IP67
- Operating voltage: 250 VDC / 250 VAC
- Connection: M12x1 / Male / angled / 4-pin / D-coded
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cURus WEEE |
| Material: Housing / Grip | Die-cast Zinc |
| Material: Jacket / Cover Nut | Die-cast Zinc |
| Material: Sensing Surface / Contacts | Brass / PA |
| Cable Diameter (mm) | 5mm ... 8mm |
| Connection Type | M12x1 / Male / angled / 4-pin / D-coded |
| Connection Style | Screw terminals |
| Tightening Torque | 0.6 Nm |
| Operating Voltage | 250 VDC / 250 VAC |
| Current Rating / Rated Current | 4 A |
