Description

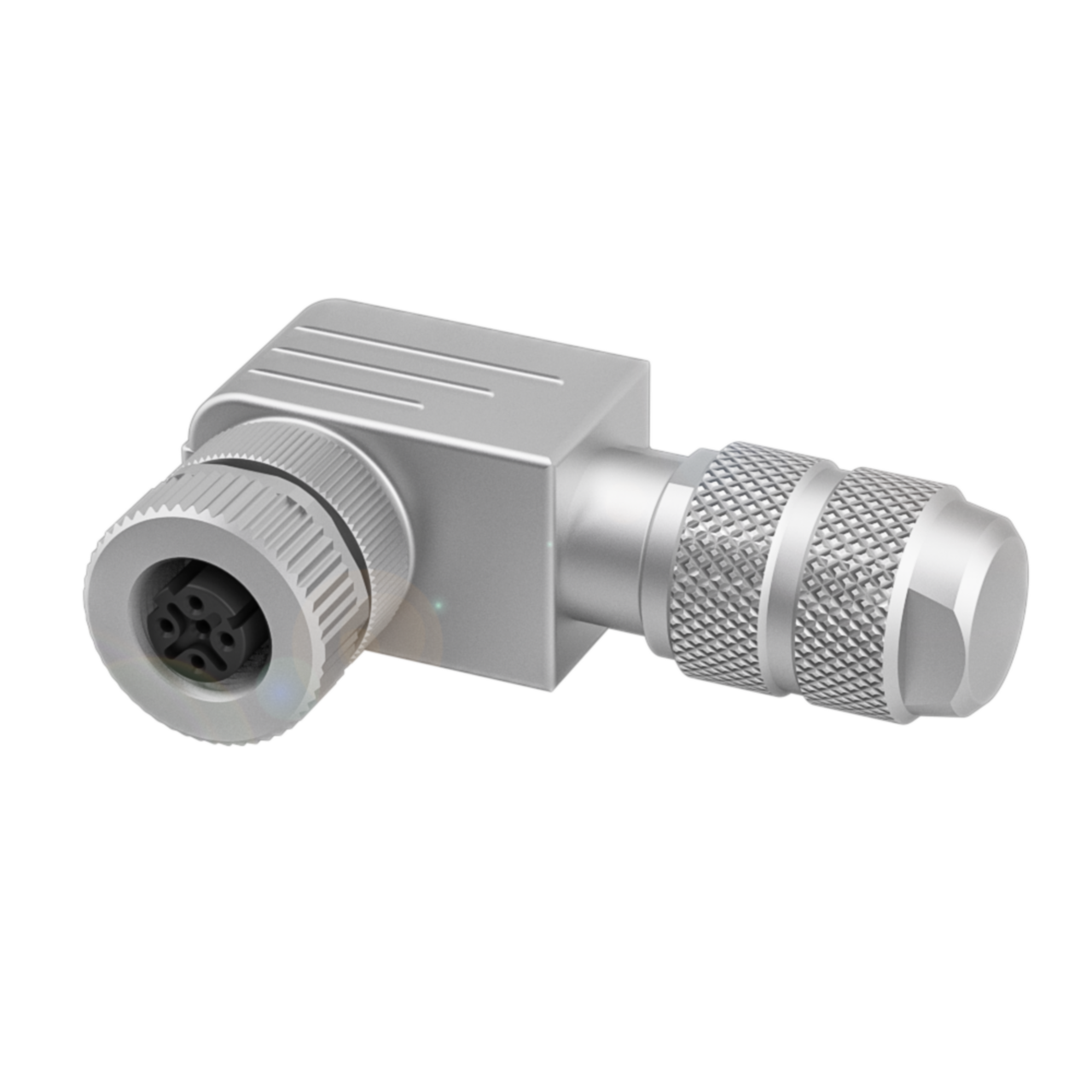

xThe BCC M484-0000-1D-000-51X475-000 is a field attachable M12x1 connector with a female, angled, 4-pin, D-coded interface, terminated on-site using screw terminals for cable diameters between 5mm and 8mm. Housing, grip and jacket are die-cast zinc, with brass/PA sensing surface contacts, giving an IP67-rated connection suitable for industrial automation and field sensing applications. It is rated for operating voltages up to 250 VDC/VAC and a current of 4 A, with a specified tightening torque of 0.6 Nm, and carries CE, cURus and WEEE compliance markings.
Key specifications
- IP rating: IP67
- Operating voltage: 250 VDC / 250 VAC
- Connection: M12x1 / Female / Angled / 4-pin / D-coded
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cURus WEEE |
| Material: Housing / Grip | Die-cast Zinc |
| Material: Jacket / Cover Nut | Die-cast Zinc |
| Material: Sensing Surface / Contacts | Brass / PA |
| Cable Diameter (mm) | 5mm ... 8mm |
| Connection Type | M12x1 / Female / Angled / 4-pin / D-coded |
| Connection Style | Screw terminals |
| Tightening Torque | 0.6 Nm |
| Operating Voltage | 250 VDC / 250 VAC |
| Current Rating / Rated Current | 4 A |
