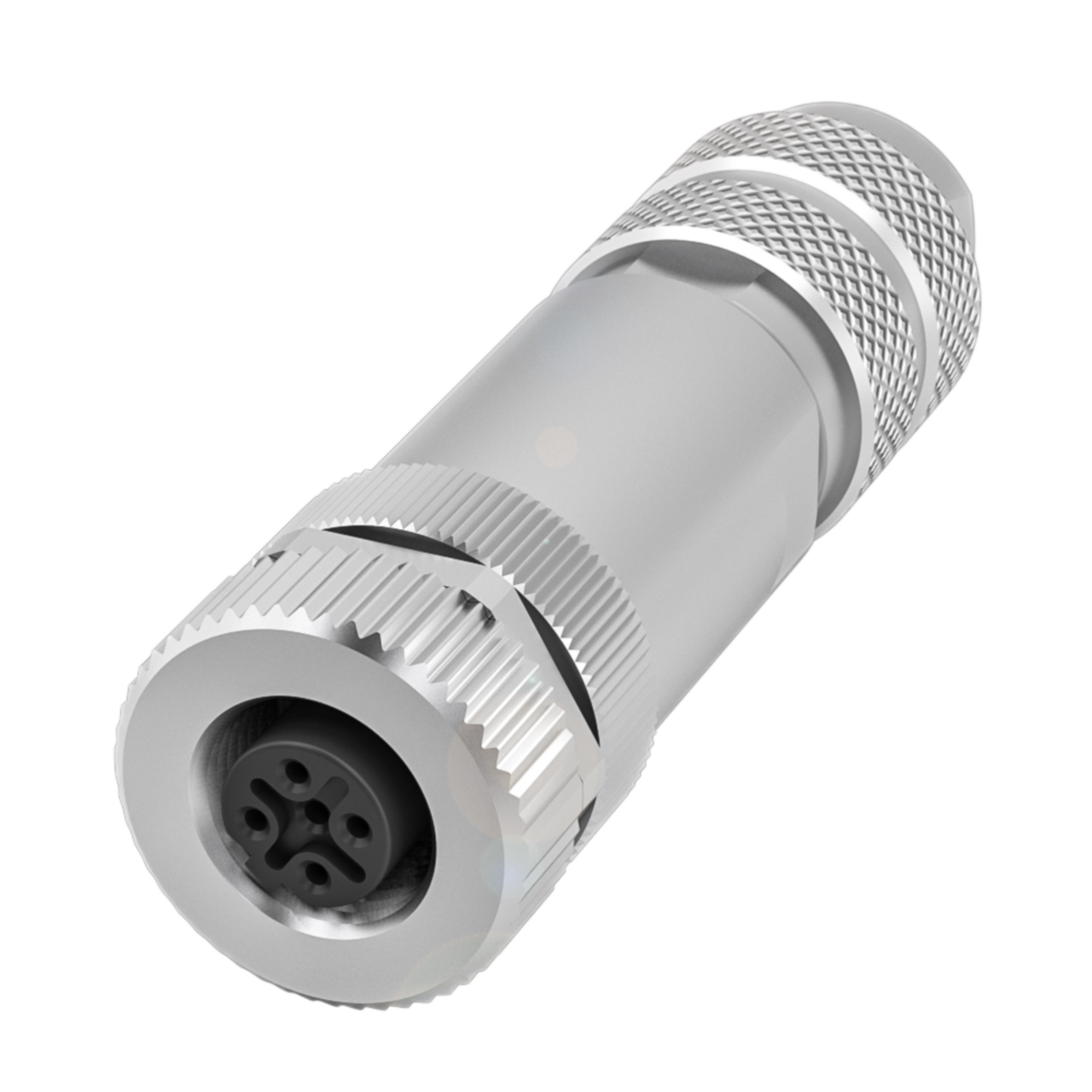

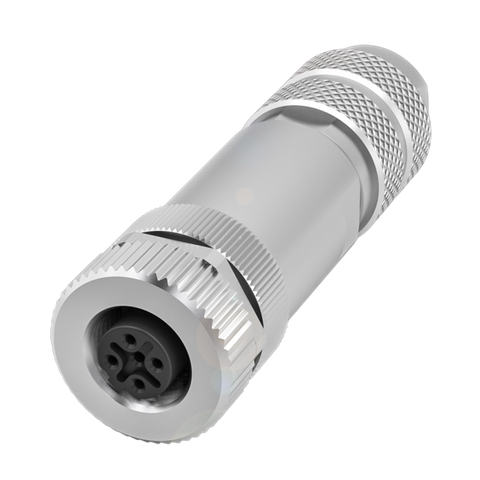

Balluff BCC M475-0000-1B-000-01X575-000 Field attachable Part number BCC0715

This is a field attachable connector from Balluff's BCC series, providing an M12x1, 5-pin, B-coded female straight termination for cables with an outer diameter of 5mm to 8mm. The die-cast zinc housing and cover nut, brass contact surfaces and PA contact carrier give it an IP67 rating for use in industrial environments where sensors and cables are terminated on site. Rated for operation up to 250 VDC/VAC and 4.0 A, it is suited to field wiring of automation and sensing circuits in control panels and machine builds.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12x1 / Female / Straight / 5-pin / B-coded
