Description

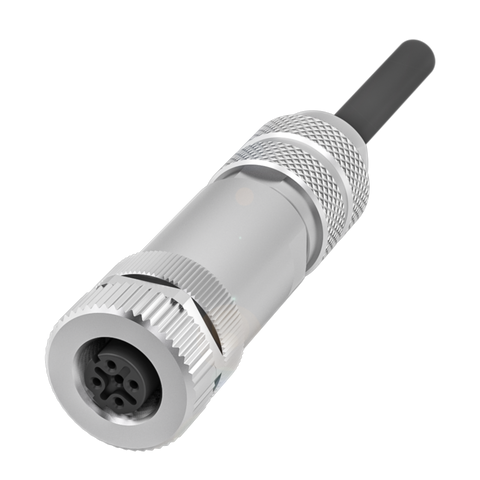

xThis is a field attachable M12 connector from Balluff, featuring a straight female M12x1, 4-pin, D-coded connection with screw terminals for on-site cable assembly. Constructed with a die-cast zinc housing, grip and jacket, it is rated IP67 and suitable for cable diameters between 5mm and 8mm. Rated at 4A with an operating voltage of 250 VDC/VAC, it is intended for connecting sensors, actuators or field devices in industrial automation systems, carrying CE, cURus and WEEE compliance.
Key specifications
- IP rating: IP67
- Operating voltage: 250 VDC / 250 VAC
- Connection: M12x1 / Female / straight / 4-pin / D-coded
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cURus WEEE |
| Material: Housing / Grip | Die-cast Zinc |
| Material: Jacket / Cover Nut | Die-cast Zinc |
| Material: Sensing Surface / Contacts | Brass / PA |
| Cable Diameter (mm) | 5mm ... 8mm |
| Connection Type | M12x1 / Female / straight / 4-pin / D-coded |
| Connection Style | Screw Terminals |
| Tightening Torque | 0.6 Nm |
| Operating Voltage | 250 VDC / 250 VAC |
| Current Rating / Rated Current | 4 A |
