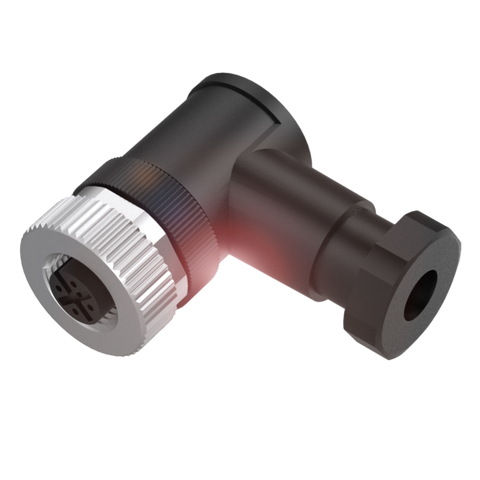

Balluff BCC M445-0000-1A-000-51X475-000 Field attachable, female Part number BCC06Y8

This is a field-attachable M12x1 female connector, angled, with 5-pin A-coded termination via screw terminals, suitable for on-site assembly onto cables with a diameter of 6mm to 8mm. The housing is PA with a zinc die-cast jacket/cover nut and brass contacts, and the connector carries an IP67 rating for use in industrial environments. It is rated for operating voltages up to 250 VDC/VAC and a rated current of 4.0 A, making it suitable for connecting sensors and actuators in automation and panel wiring applications.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12x1 / Female / angled / 5-pin / A-coded
• Mounting: Screw terminals
