Balluff BCC M444-0000-2A-000-41X475-000 Field attachable, male Part number BCC06ZC

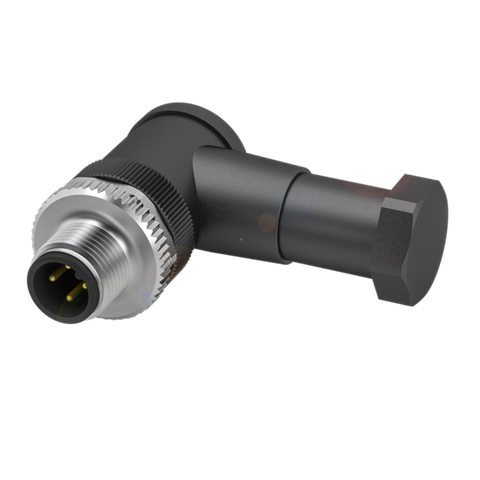

This is a field attachable M12x1 male connector with angled body and 4-pin A-coded termination, wired via screw terminals to accommodate conductor cross sections from 0.14 to 0.75 mm². The housing and grip are made of PA with a zinc die-cast jacket/cover nut and brass sensing surface/contacts, and the connector carries an IP67 rating for use in industrial environments where sensors and cables are field-terminated on panels or machines. It is rated for operating voltages up to 250 VDC/VAC and a rated current of 4.0 A, and holds CE, cURus and WEEE compliance.

Key specifications

• IP rating: IP67
• Operating voltage: 250 VDC / 250 VAC
• Connection: M12x1 / Male / angled / 4-pin / A-coded
• Mounting: Screw terminals
