Balluff BCC M435-0000-1L-000-61X5B5-000 Field attachable, 16A
Balluff BCC M435-0000-1L-000-61X5B5-000 Field attachable, 16A

Balluff BCC M435-0000-1L-000-61X5B5-000 Field attachable, 16A

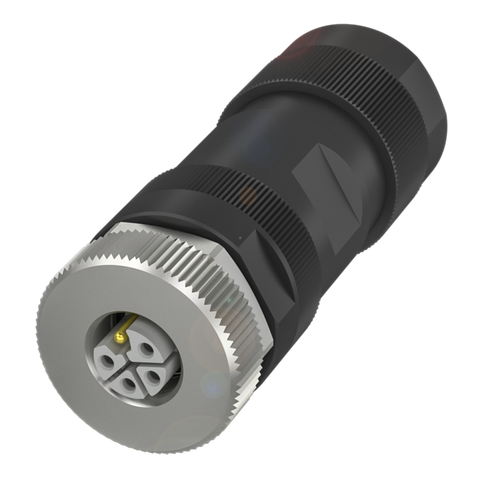

This field-attachable connector is designed for M12x1 connections and supports up to 16 A of current. It offers a robust IP67-rated design, making it suitable for harsh environments, and features screw terminals for secure wiring in industrial applications.
Vendor: Balluff
SKU: BCC0LCT
Availability: In stock
Product type: Field Sensing & Switching
Please hurry! Only 7 left in stock
Description
Description
x

This field-attachable connector is designed for M12x1 connections and supports up to 16 A of current. It offers a robust IP67-rated design, making it suitable for harsh environments, and features screw terminals for secure wiring in industrial applications.

Specifications
Specifications
x
IP RatingIP67
Compliance/CertificationsCE WEEE
Material: Housing / GripPA
Material: Jacket / Cover NutDie-cast Zinc
Material: Sensing Surface / ContactsBrass / PA
Connection TypeM12x1 / Female / Straight / 5-pin / L-coded
Connection StyleScrew terminals
Rated Voltage63 VDC / 63 VAC
Current Rating / Rated Current16 A
Documents
Documents
x
Download Datasheet
