Description

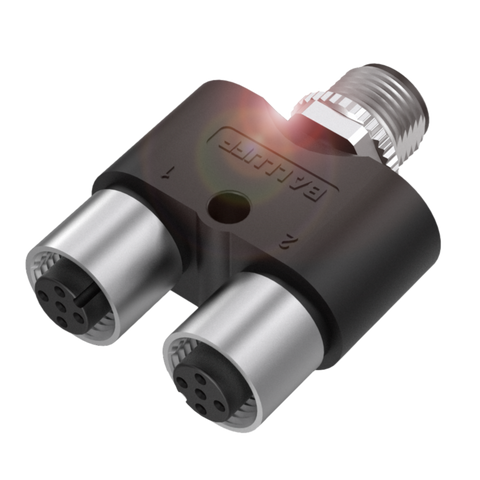

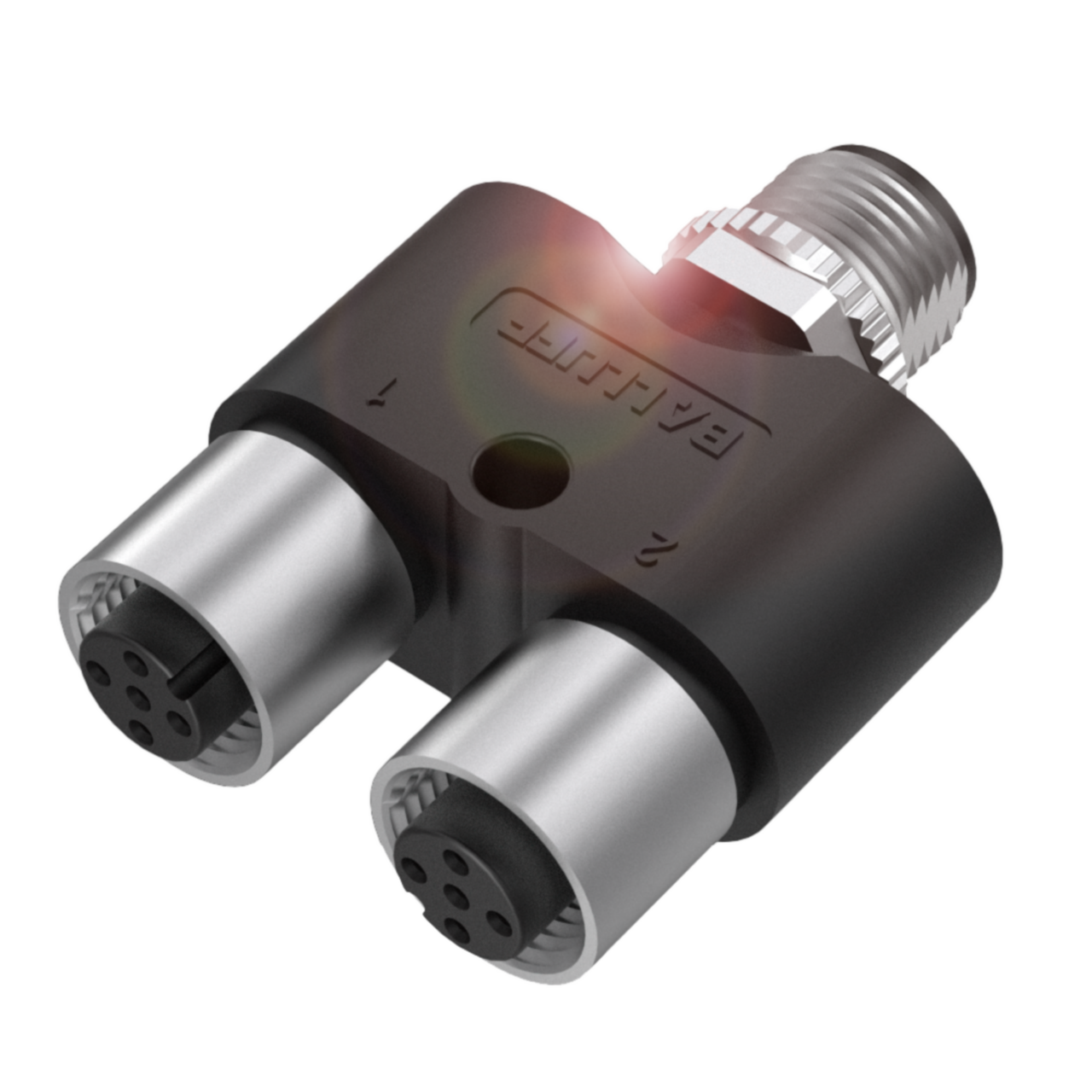

xThis M12 tee coupler allows a single field cable run to branch into two additional M12 connections, with one male 5-pin A-coded connection and two female 5-pin A-coded connections. The housing is glass-fibre reinforced PA 6.6 with a brass, nickel-plated cover nut, and gold-plated copper alloy contacts, rated IP67 for use in exposed panel and machine wiring applications. It is rated for operating voltages up to 125 VDC/VAC and a rated current of 4.0 A, suitable for sensor and actuator connections in automation systems.
Key specifications
- IP rating: IP67
- Operating voltage: 125 VDC / 125 VAC
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cURus WEEE |
| Material: Housing / Grip | GF/ PA 6.6 |
| Material: Jacket / Cover Nut | Brass / Nickel-plated |
| Material: Sensing Surface / Contacts | Copper Alloy / Gold-plated |
| Connection Type | Connection 1; M12x1 / Male / 5-pin / A-coded - Connection 2; M12x1 / Female / 5-pin / A-coded - Connection 3; M12x1 / Female / 5-pin / A-coded |
| Tightening Torque | 0.6 Nm/-/- |
| Operating Voltage | 125 VDC / 125 VAC |
| Rated Operating Current | 4.0 A |
