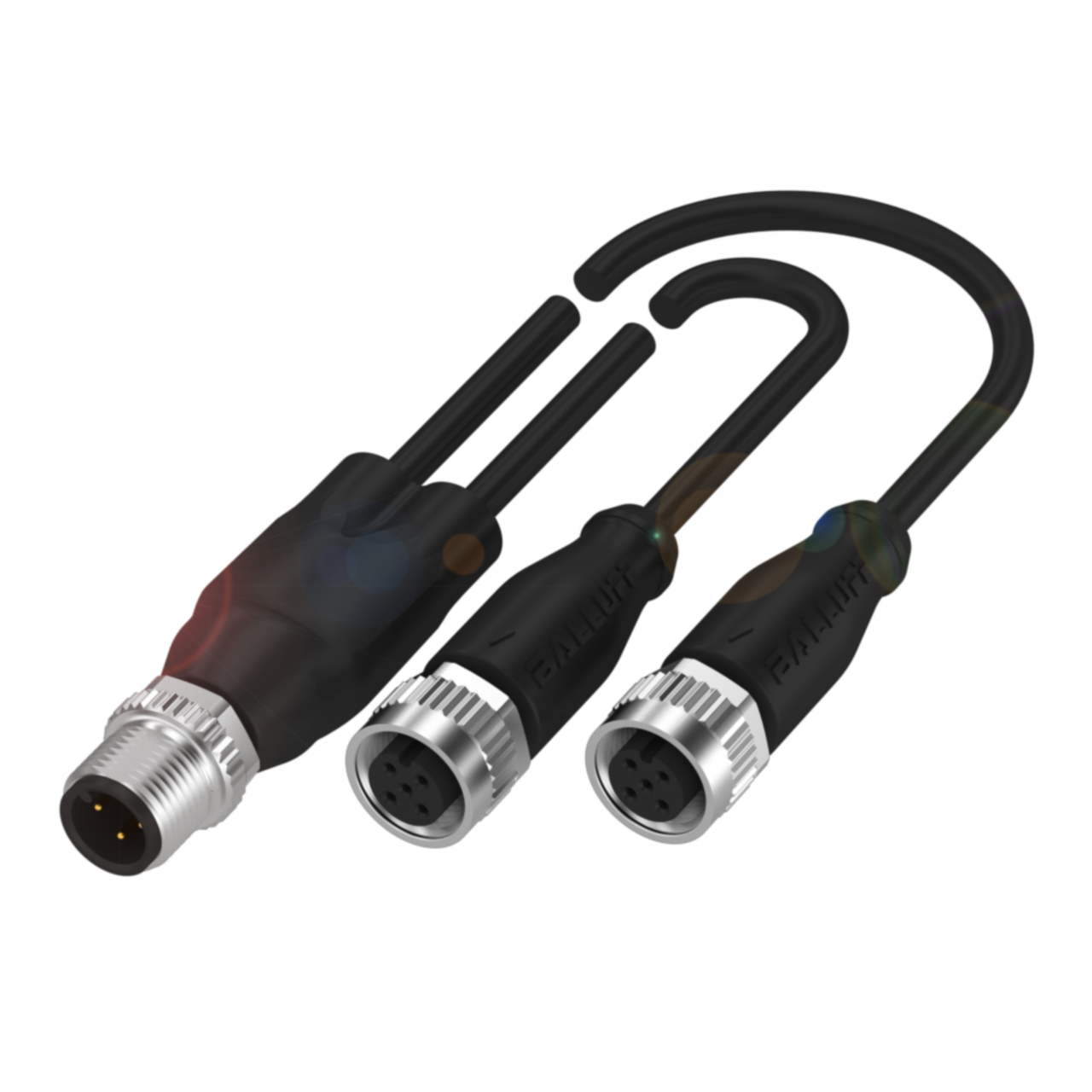

Balluff BCC M414-M415-M415-U2028-030 Y-Splitter, 40A Part number BCC0AUH

The Balluff BCC M414-M415-M415-U2028-030 is a Y-Splitter. It connects via Connection 1; M12x1 / Male / Straight / 4-pin / A-coded - Connection 2; M12x1 / Female / Straight / 5-pin / A-coded - Connection 3; M12x1 / Female / straight, 5-pin, Acoded and operates from 250 VDC / 250 VAC. The housing is rated IP67, IP68, IP69K/IP67, IP68, IP69K. Approvals: CE, cULus, WEEE.

Key specifications

• IP rating: IP67, IP68, IP69K/IP67, IP68, IP69K
• Operating voltage: 250 VDC / 250 VAC
• Colour: Black
• Bending radius: Fixed cable: 5 x Diameter / Flexible cable: 10 x Diameter
