Balluff BCC M333-0000-20-000-13X325-000 Field attachables Part number BCC0HLP

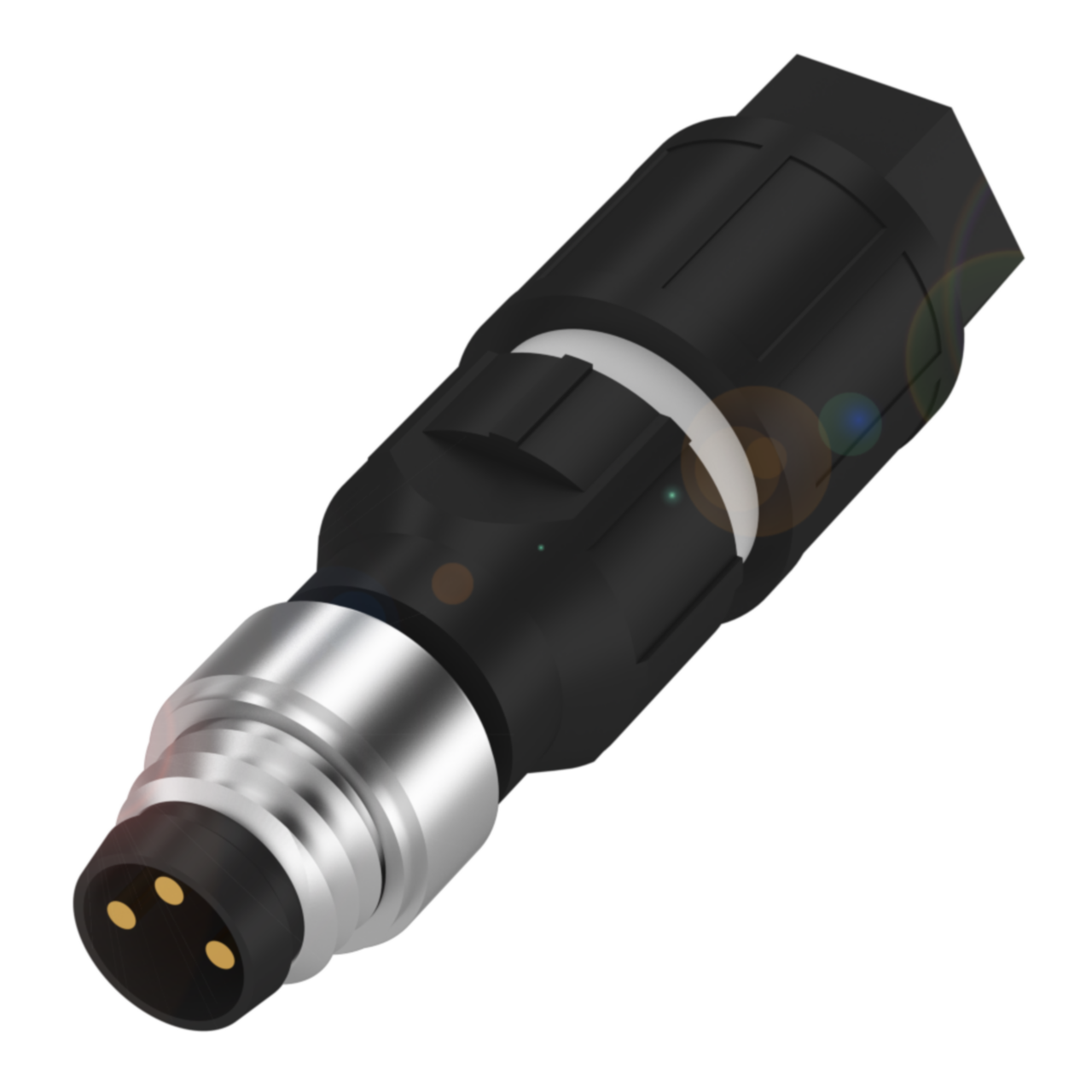

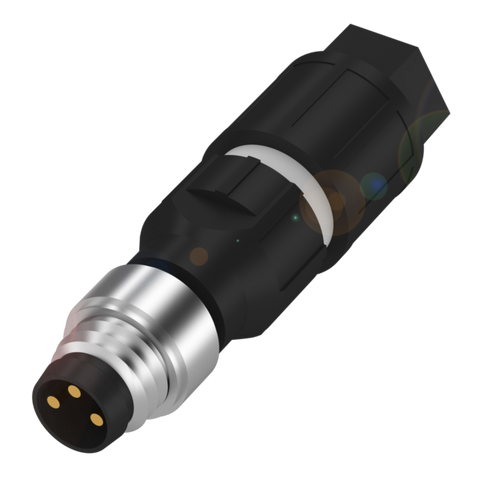

The BCC M333-0000-20-000-13X325-000 is a field-attachable connector for building custom cable assemblies on site, featuring an M8x1, male, straight, 3-pin A-coded termination. It accepts cable diameters of 2.5 to 5.2mm and is rated IP67, making it suitable for sensor and actuator connections in industrial environments where field wiring is required. The housing and grip are PA with a die-cast zinc jacket/cover nut, and contacts are brass/PA, with a rated current of 4 A at up to 60 VDC/VAC.

Key specifications

• IP rating: IP67
• Operating voltage: 60 VDC / 60 VAC
• Connection: M8x1 / Male / straight / 3-pin / Acoded
