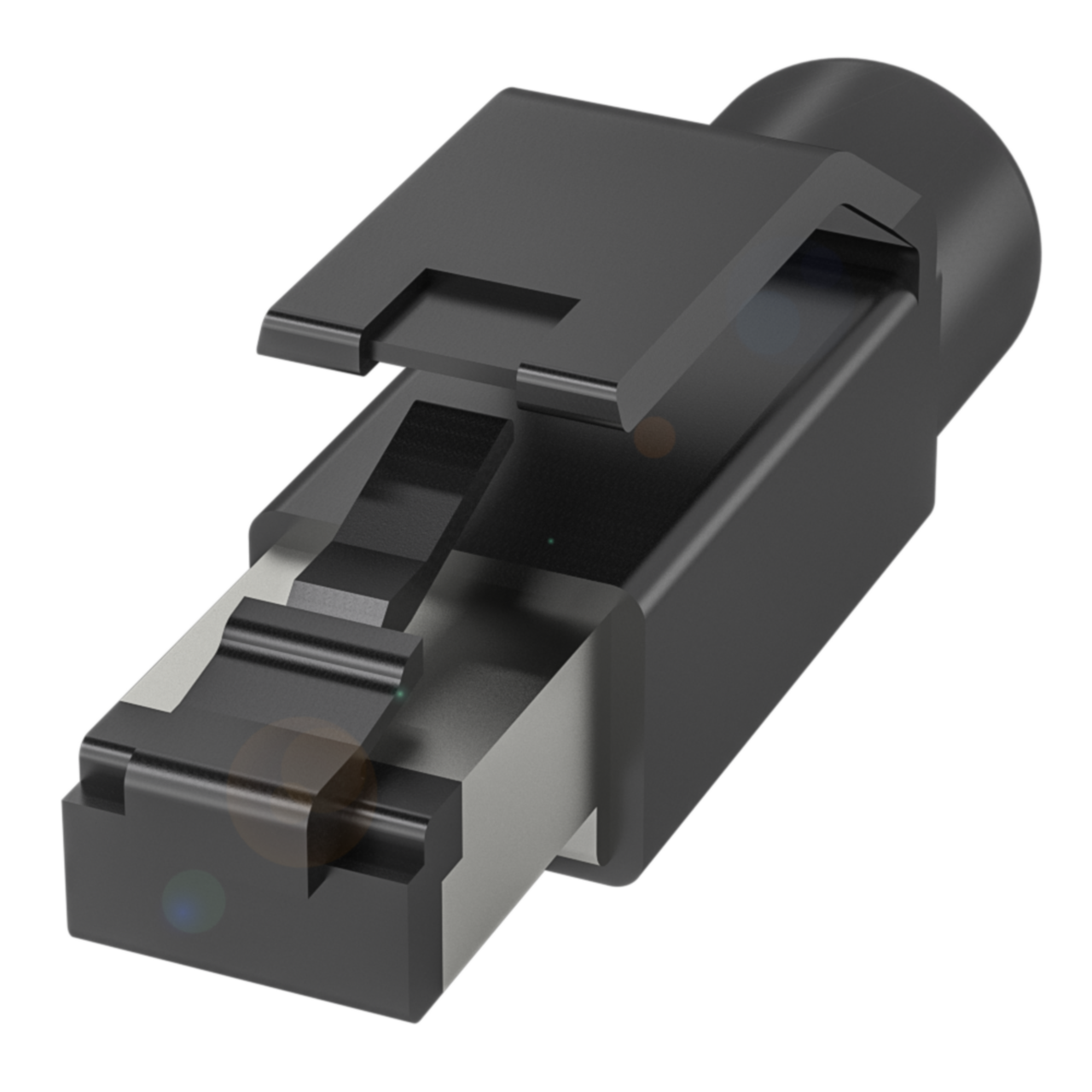

Balluff BCC E834-0000-20-000-53X4T2-000 Field attachable Part number BCC06FH

This is a field attachable RJ45 connector with a straight male 4-pin termination, intended for assembly onto cable during panel or machine installation rather than supplied pre-moulded. The housing and grip are polycarbonate with brass contacts, and it accepts cable diameters from 4.5mm to 9mm with conductor cross sections of 0.2 to 0.34 mm². Rated for 125 VDC/VAC at 1A with an IP20 enclosure rating, it is suited to enclosed panel environments rather than exposed or washdown areas. Typical use is in industrial automation networks where data connectivity is required between sensors, actuators and control systems.

Key specifications

• IP rating: IP20
• Operating voltage: 125 VDC / 125 VAC
• Connection: RJ45 / Male / Straight / 4-pin
