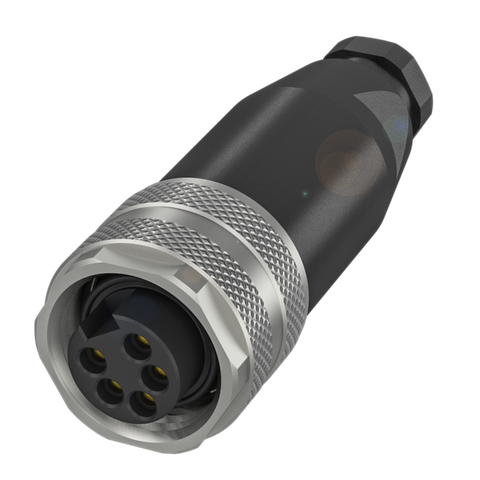

Balluff BCC A335-0000-10-000-51X5A5-000 Field attachable Part number BCC070E

This is a field-attachable connector with a 7/8" 16 UN female straight coupling and 5-pin screw terminal connection, accepting cable diameters between 6mm and 8mm. The housing is PBT with a die-cast zinc cover nut and brass/PA/PUR contacts, rated IP67 for use in demanding industrial environments. It is rated for operating voltages up to 600 VDC/VAC and a current of 9 A, with a specified tightening torque of 1.5 Nm for terminal connections. Typical applications include field wiring of sensors and actuators in automation and machine-building installations.

Key specifications

• IP rating: IP67
• Operating voltage: 600 VDC / 600 VAC
• Connection: 7/8" / 16 UN-Female / Straight / 5-pin
