Description

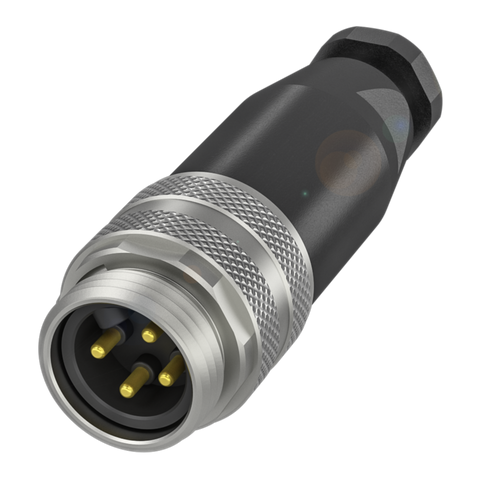

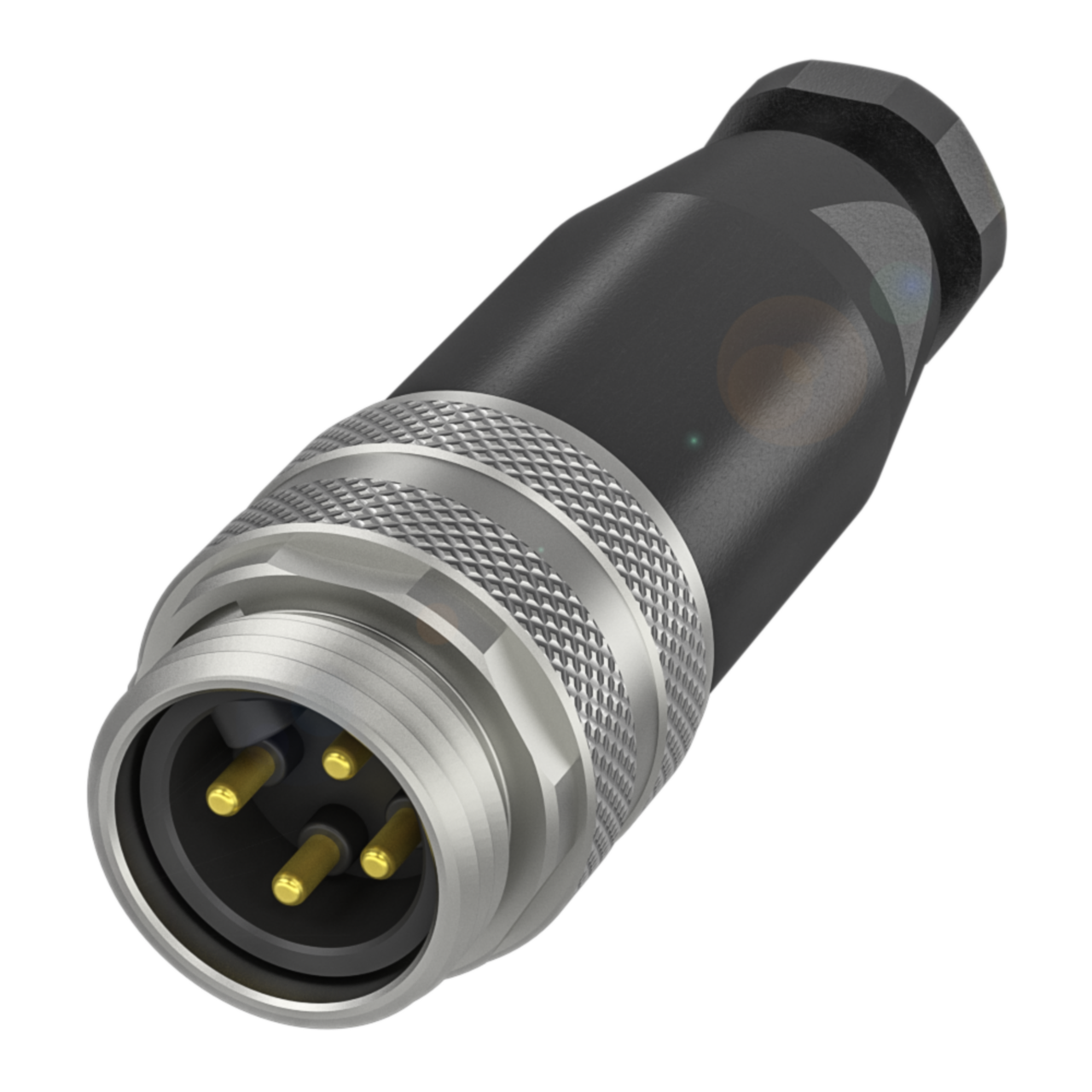

xThis is a field-attachable connector with a 7/8" 6 UN male straight 4-pin coupling, terminated using screw terminals for cable diameters between 8mm and 10mm. The housing and grip are PBT with a die-cast zinc jacket/cover nut, giving an IP67 rating for use in demanding industrial environments. It is rated for operating voltages up to 600 VDC/VAC and a current of 9 A, suitable for field wiring of automation and power distribution circuits on machines and panels.
Key specifications
- IP rating: IP67
- Operating voltage: 600 VDC / 600 VAC
- Connection: 7/8" / 6 UN / Male / Straight / 4-pin
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cURus WEEE |
| Material: Housing / Grip | PBT |
| Material: Jacket / Cover Nut | Die-cast Zinc |
| Material: Sensing Surface / Contacts | Brass / PA / PUR |
| Cable Diameter (mm) | 8mm .. 10mm |
| Connection Type | 7/8" / 6 UN / Male / Straight / 4-pin |
| Connection Style | Screw Terminals |
| Tightening Torque | 1.5 Nm |
| Operating Voltage | 600 VDC / 600 VAC |
| Current Rating / Rated Current | 9 A |
