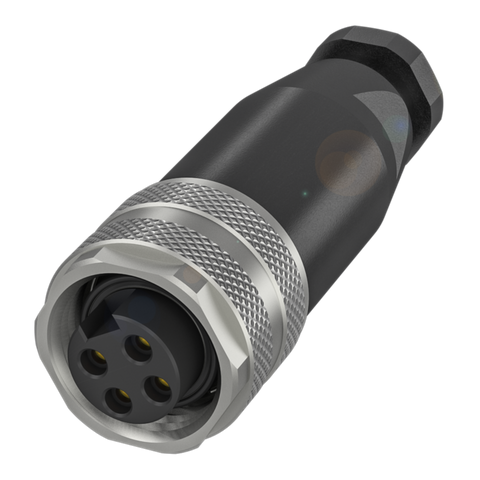

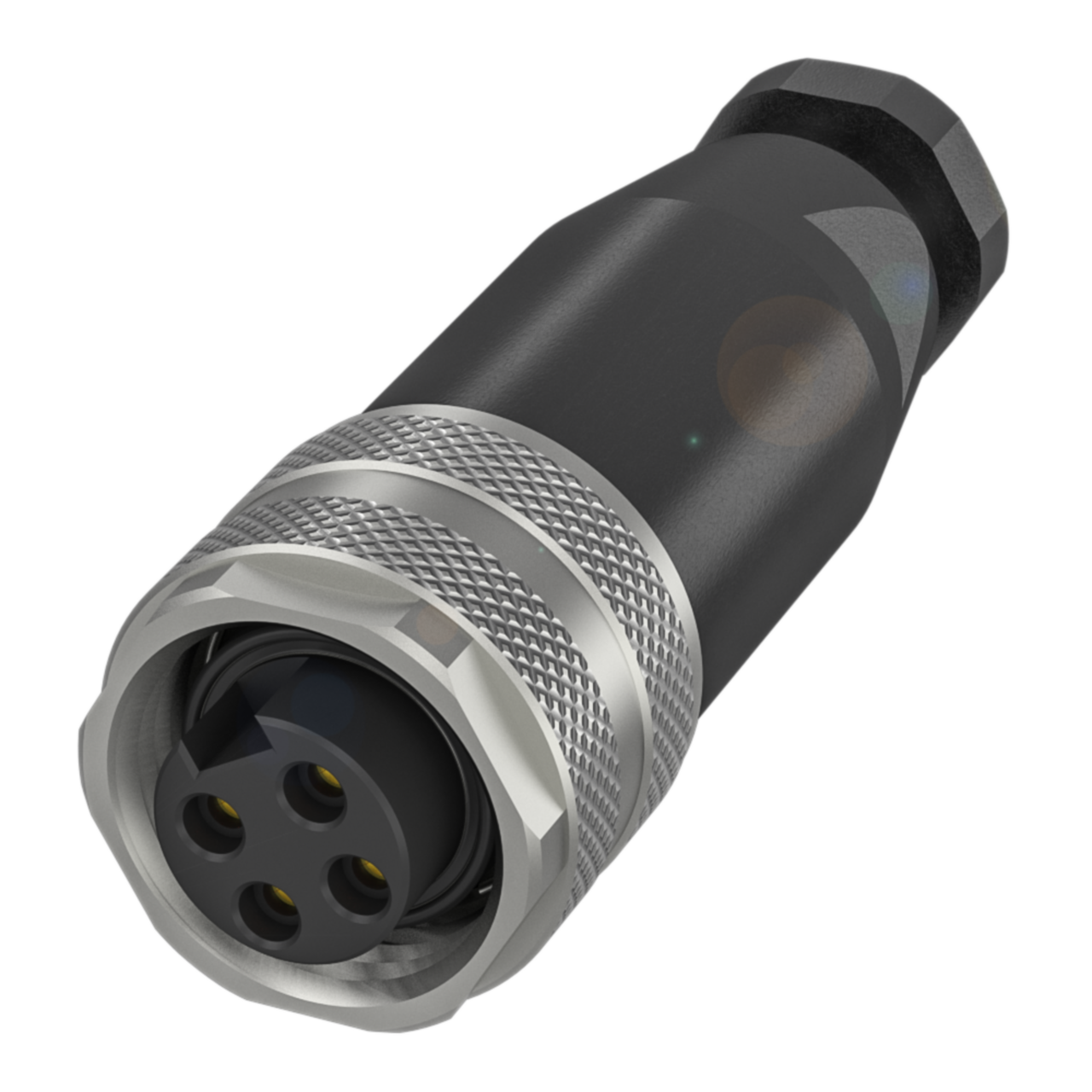

Balluff BCC A334-0000-10-000-61X4A5-000 Field attachable, female Part number BCC0707

This is a field attachable female connector with a 7/8" 16 UN, 4-pin straight connection, terminated using screw terminals for cable diameters between 8mm and 10mm. The housing is constructed from PBT with a die-cast zinc jacket and brass contacts, and the assembly carries an IP67 rating for use in demanding industrial environments. It is rated for operating voltages up to 600 VDC/VAC and a current of 9 A, making it suitable for field wiring of sensors and actuators on automation panels and machinery.

Key specifications

• IP rating: IP67
• Operating voltage: 600 VDC / 600 VAC
• Connection: 7/8" / 16 UN / Female / Straight / 4-pin
