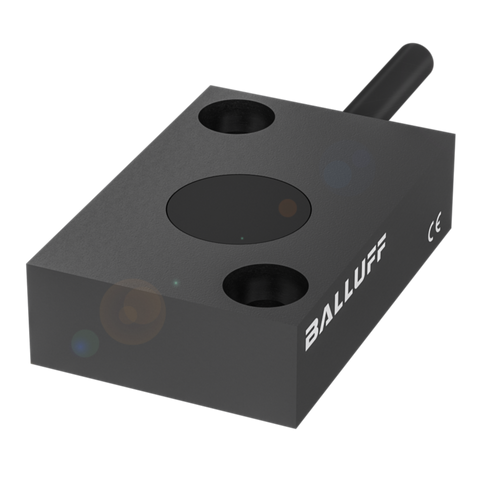

Balluff BAW R06AC-UAF20B-EP03 Inductive distance sensor
Balluff BAW R06AC-UAF20B-EP03 Inductive distance sensor

Balluff BAW R06AC-UAF20B-EP03 Inductive distance sensor

This analog inductive sensor provides voltage output for precise position detection with a measuring range of 0.5 to 2 mm. It is designed for flush mounting and offers a high degree of accuracy and repeatability, making it ideal for demanding industrial applications. The sensor operates in a temperature range of...
Vendor: Balluff
SKU: BAW0033
Availability: Out Of Stock
Product type: Field Sensing & Switching
Please hurry! Only 0 left in stock
Description
Description
x

This analog inductive sensor provides voltage output for precise position detection with a measuring range of 0.5 to 2 mm. It is designed for flush mounting and offers a high degree of accuracy and repeatability, making it ideal for demanding industrial applications. The sensor operates in a temperature range of 10°C to 60°C.

Specifications
Specifications
x
Compliance/CertificationsCE UKCA cULus WEEE
Material: Housing / GripAnodized Aluminium
Material: Jacket / Cover NutPUR
Material: Sensing Surface / ContactsPBT
Cable Length (mm)3mm
Cable Diameter (mm)3mm
Conductor Cross-section0.14 mm²
Connection TypeCable, 3.00 m, PUR
Rated Insulation Voltage75 VDC
Operating Voltage 21.6 - 26.4 VDC
Rated Voltage24 V
Mounting TypeFlush mounting
Documents
Documents
x
Download Datasheet
