Description

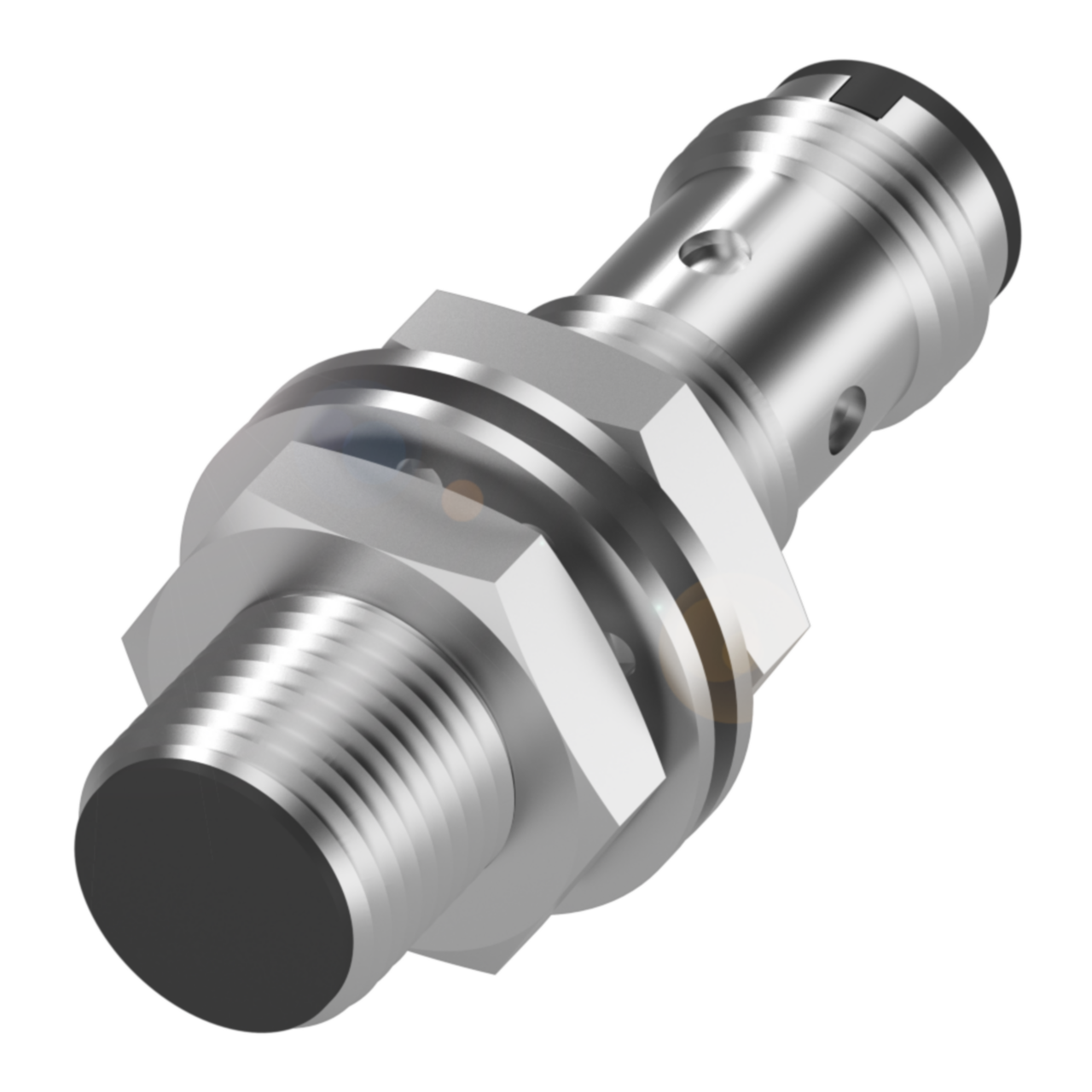

xThe Balluff BAW M12ME-UAC20C-S04G is an inductive distance sensor housed in a 12 mm diameter, M12 threaded body with a brass, nickel-free coated housing and PBT sensing surface. It provides an analogue 0 V to 10 V output over an M12x1, 4-pin A-coded male connector, operating from 15 to 30 VDC, and is rated IP67 for use in flush mounting applications. It suits automation panels and machinery where inductive distance measurement is required in harsh industrial environments.
Key specifications
- IP rating: IP67
- Operating voltage: 15 - 30 VDC
- Rated voltage: 24 V
- Connection: M12x1 / Male / 4-pin / A-coded
- Mounting: Flush mounting
Specifications
x| IP Rating | IP67 |
| Compliance/Certifications | CE cULus WEEE / IEC 60947-5-2 IEC 60947-5-7 |
| Material: Housing / Grip | Brass / Nickel-free coated |
| Material: Sensing Surface / Contacts | PBT |
| Part Length (mm) | 45mm |
| Part Diameter (mm) | 12mm |
| Connection Type | M12x1 / Male / 4-pin / A-coded |
| Tightening Torque | 10 Nm |
| Rated Insulation Voltage | 250 VAC |
| Operating Voltage | 15 - 30 VDC |
| Rated Voltage | 24 V |
| Mounting Type | Flush mounting |
| Voltage Output | 0 V - 10 V |
