Balluff BAE PS-XA-1S-24-200-104 Power supply, IO-link interface Balluff
View on Balluff
Balluff

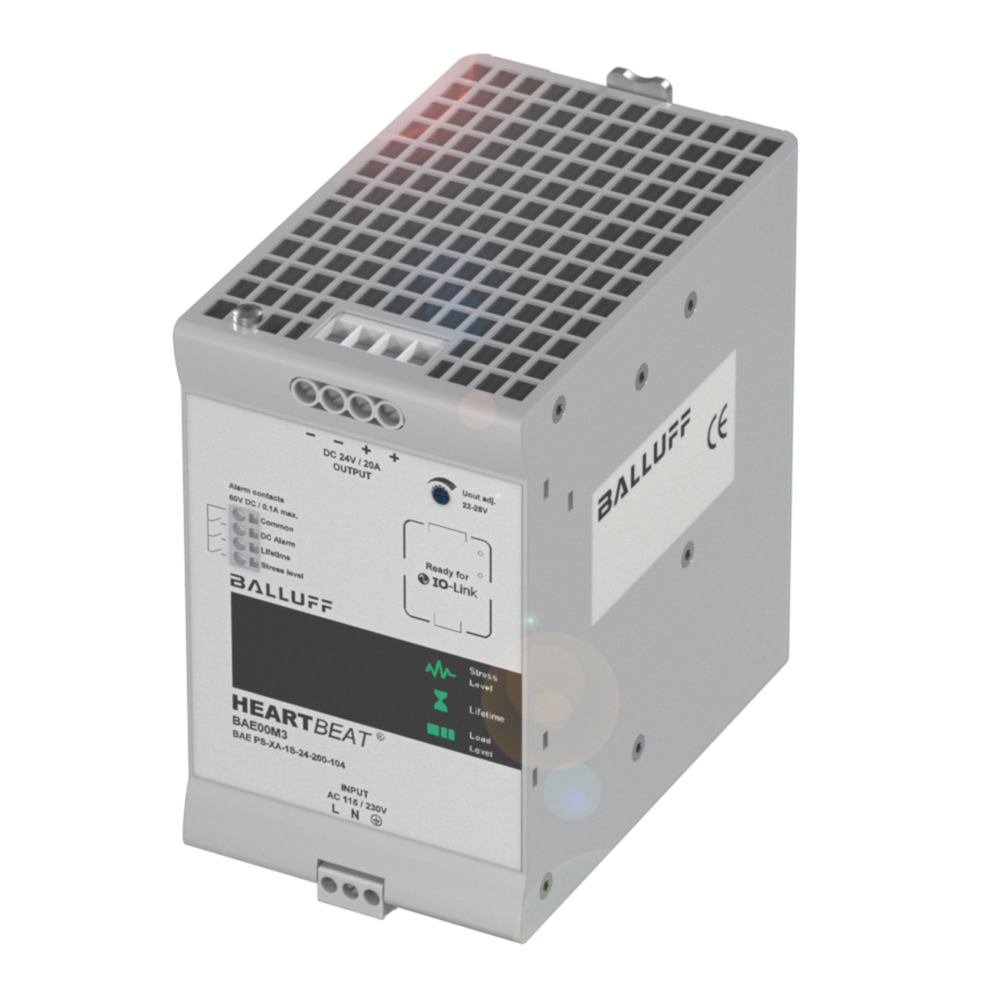

Balluff BAE PS-XA-1S-24-200-104 Power supply, IO-link interface Part number BAE00M3

Product Type Field Sensing & Connectivity
Back Order
View Full Product Details on Balluff 💬 Ask an Expert - Technical Support Available

Product Description

This Balluff power supply provides an IO-Link interface within an aluminium housing, connecting via a terminal strip. It is rated IP20 and suited to enclosed panel installation, operating within an ambient temperature range of -25 to 60°C. Typical applications include control cabinets where IO-Link connectivity and power distribution are required in a compact footprint.

Key specifications

  • IP rating: IP20
  • Connection: Terminal strip
  • Operating temperature: -25...60 °C
  • Dimensions: 79 x 127 x 139 mm
  • Material: Aluminium

Technical Specifications

dimension79 x 127 x 139 mm
housing_materialAluminium
connectionTerminal strip
ambient_temperature-25...60 °C
ip_ratingIP20
approval_conformityCEWEEEcULus
