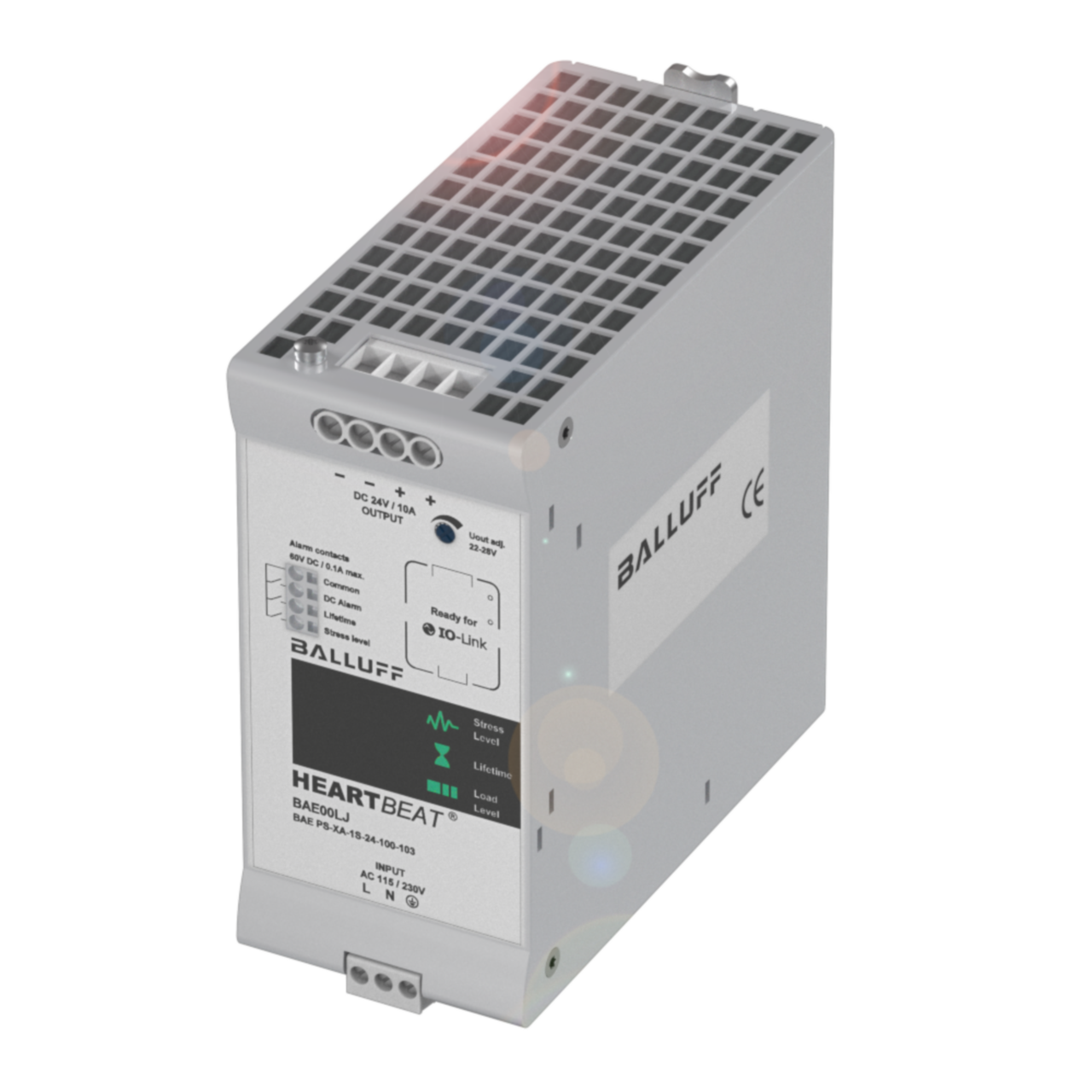

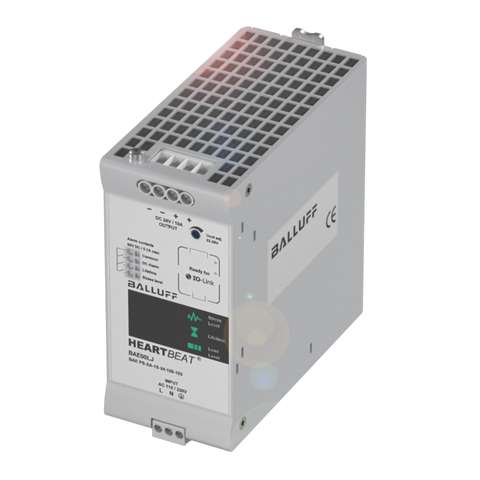

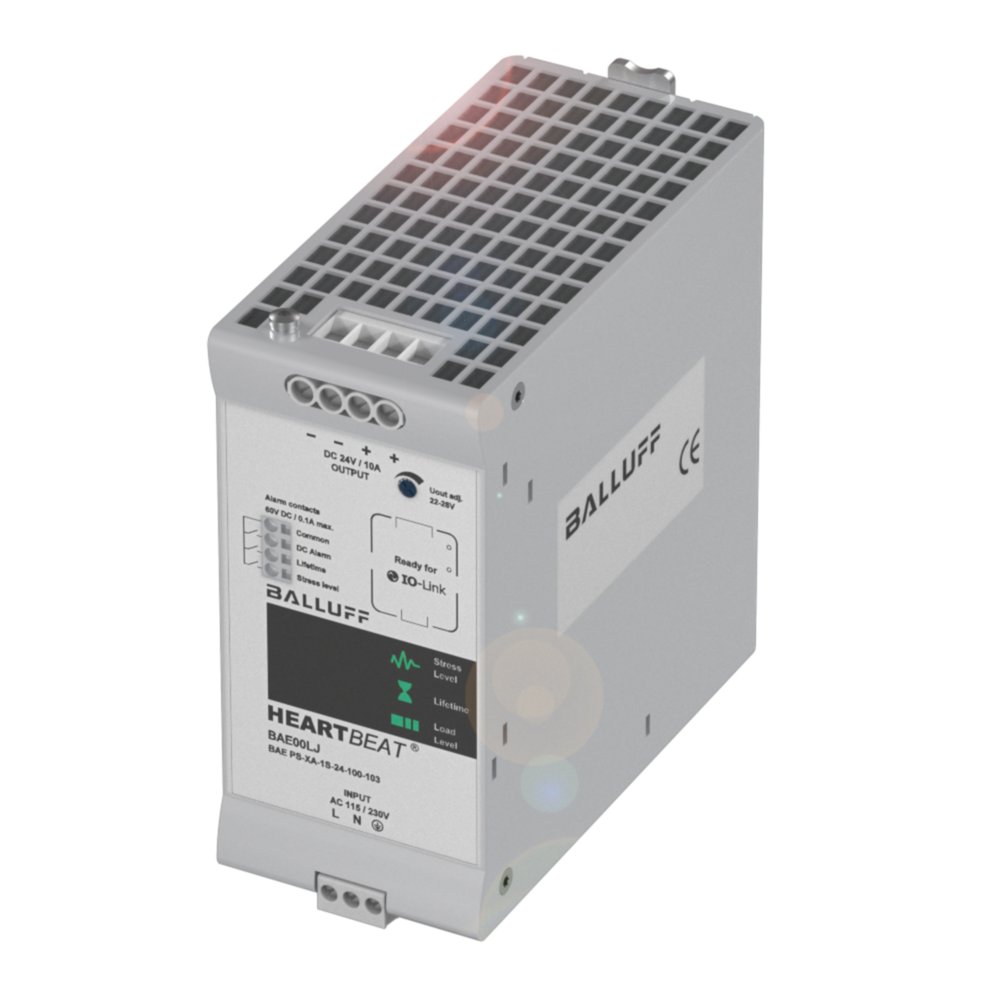

Balluff BAE PS-XA-1S-24-100-103 Heartbeat® PSU, IO-link
View on Balluff
Balluff

Balluff BAE PS-XA-1S-24-100-103 Heartbeat® PSU, IO-link Part number BAE00LJ

Product Type Field Sensing & Connectivity
Category Enclosure
Sub-category Power Supply
Back Order
View Full Product Details on Balluff 💬 Ask an Expert - Technical Support Available

Product Description

This Balluff PSU converts 90...132 VAC or 198...264 VAC input to a regulated 24VDC output at 10A rated current, with IO-Link connectivity for condition monitoring within the Heartbeat® range. It is housed in an aluminium enclosure rated IP20 and mounts on DIN rail, connecting via terminal strip for straightforward panel wiring. Typical use is as the primary 24VDC supply within control cabinets requiring monitored power delivery to automation and field devices.

Key specifications

  • IP rating: IP20
  • Connection: Terminal Strip
  • Mounting: DIN rail mount

Technical Specifications

IP RatingIP20
Compliance/CertificationsCE cURus cULus WEEE / EN 61204 / IEC 60950-1 / UL 60950-1 / EN 60950-1 / UL 508 / CSA 22.2 No. 107.1
Material: Housing / GripAluminium
Part Depth (mm)60mm
Part Width (mm)127mm
Part Height (mm)127mm
Weight (g)0.85g
Connection TypeTerminal Strip
Switching Frequency (Hz)115000Hz
Mounting TypeDIN rail mount
Voltage Output24VDC
Voltage Input90...132 VAC 198...264 VAC
Current Rating / Rated Current10A
View complete specifications on Balluff
