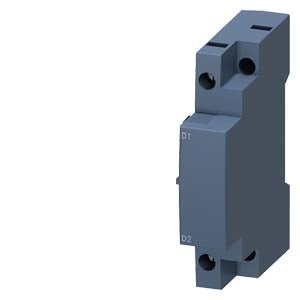

Siemens Undervoltage release with screw terminal, 24VDC
Log in to view pricing
Sign in with your trade account to access live pricing and place orders. New to Rubicon Industrial Technology? Create an account in seconds.
Product Description
Product Overview
Undervoltage release 24 V DC with screw terminal for circuit breaker 3RV2. This essential safety component ensures reliable circuit protection by automatically tripping the circuit breaker when voltage drops below safe operating levels.
Technical Specifications
Article Number: 3RV2902-1AB4
Electrical Characteristics:
- Operating voltage: 24 V DC
- Terminal type: Screw terminal
- Compatible with: Circuit breaker 3RV2 series
Physical Properties:
- Net weight: 0.144 kg
- Packaging dimensions: 45.00 x 102.00 x 86.00 mm
- Packaging quantity: 1 piece
- Country of origin: Czech Republic
Product Identifiers:
- EAN: 4011209790988
- UPC: 662643924855
Compliance & Environmental:
- RoHS Compliance: Since 01.05.2012
- WEEE Take-Back Obligation: Yes
- REACH Regulation: Contains lead in concentrations higher than 0.1% weight by weight. Based on current information, this substance does not pose risk when used as intended.
Classifications:
- eClass: 27-37-04-17
- ETIM: EC001022
- UNSPSC: 39-12-16-35
Download existing graphical data for this product:
Additional Information
| IP Rating | IP20 |
| IP Rating Detailed | IP20 break time maximum 20 ms reference code according to DIN 40719 extended according to IEC 204, IP20 touch protection on the front according to IEC 60529 finger |
| Compliance/Standards | IEC 60529, EN 61346-2 |
| Part Width (mm) | 45,00mm |
| Part Height (mm) | 102,00mm |
| Part Depth (mm) | 86,00mm |
| Weight (g) | 0,144 Kg |
| Type of Voltage | DC |
| description | Undervoltage release 24 V DC with screw terminal for circuit breaker 3RV2 |
| country_of_origin | Czech Republic |
Technical Documentation & Downloads
Additional Datasheet
CAD Drawing
Technical CAD drawing file

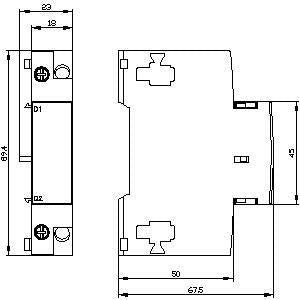

Dimensional Drawing
