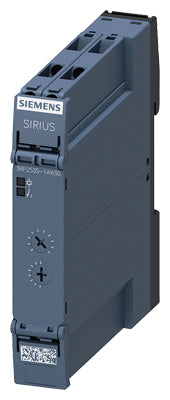

Siemens Timing relay, off delay with control signal, 1 c/o, 12-240VDC
View on Siemens 📄 Datasheet
Siemens

Siemens Timing relay, off delay with control signal, 1 c/o, 12-240VDC Part number 3RP2535-1AW30

EAN / Barcode 4011209943711
Product Type Control Panel
Product Class Timer relay
ETIM Class Timer relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Timing relay

The Timing relay offers versatile OFF delay functionality for various time-delayed switching operations in control, starting, and protective circuits.

Technical details:

  • OFF delay with control signal
  • 1 change-over contact
  • 15 time ranges 0.05 s...100 h
  • 12-240 V DC
  • Wide voltage range at 50/60 Hz AC with LED
  • Screw terminal SIRIUS 3RP25 time relay
  • Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation
  • Various connection technologies
  • Replaces 3RP15 series

Customer benefits:

  • Wide range of applications due to a wide variety of functions within a very small space
  • Can be used worldwide thanks to international approvals and a wide range of voltages
  • Innovative enclosure concept in an industrial design offers labeled cover caps, removable terminals and much more
  • SIRIUS relays - one range for every application

Technical Specifications

Depth90 mm
Height100 mm
Number of outputs, delayed, change-over contact1
Rated control supply voltage AC 50 Hz240 V
Rated control supply voltage AC 60 Hz240 V
Rated control supply voltage DC240 V
Time range360000 s
Type of electric connectionScrew connection
Voltage type for actuatingAC/DC
Width17.5 mm
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples
