Product Overview

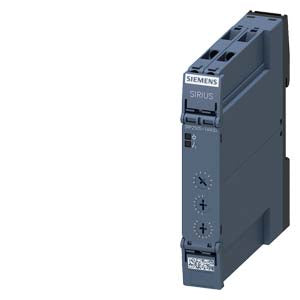

Timing relay, multifunction 1 changeover contact, 13 functions 7 time ranges (0.05 s...100 h) 12...240 V AC/DC at 50/60 Hz AC with LED, screw terminal

This advanced multifunction timing relay (Article Number: 3RP2505-1AW30) from the SIRIUS 3RP25 series provides comprehensive timing control for demanding industrial automation applications. The device features one changeover contact with 13 selectable functions and offers seven time ranges from 0.05 seconds to 100 hours. Operating on a wide voltage range of 12...240 V AC/DC at 50/60 Hz AC, it includes an LED indicator for clear status display and screw terminal connections for secure wiring.

Key Features

• Advanced multifunction timing relay with extensive timing capabilities
• 1 changeover contact for flexible switching applications
• 13 selectable functions providing maximum versatility
• 7 time ranges covering 0.05 seconds to 100 hours
• Wide voltage range 12...240 V AC/DC at 50/60 Hz AC for universal compatibility
• LED status indicator for clear visual feedback
• Screw terminal connections for secure and reliable wiring
• Compact design for efficient panel space utilization
• Comprehensive functionality suitable for complex timing applications

Technical Specifications

• Net Weight: 0.140 kg
• Packaging Dimensions: 36.00 x 109.00 x 126.00 mm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
• Country of Origin: Germany
• Supply Voltage: 12...240 V AC/DC at 50/60 Hz AC
• Contact Configuration: 1 changeover contact
• Functions: 13 selectable functions
• Time Ranges: 7 ranges (0.05 s...100 h)
• Terminal Type: Screw terminals
• Status Indication: LED indicator

Applications

• Complex industrial automation requiring versatile timing control
• Motor control systems with multiple timing sequences
• Process control applications with sophisticated timing requirements
• Lighting control systems with advanced time-based switching
• HVAC systems requiring complex timed operation
• Manufacturing equipment with automated timing functions
• Conveyor systems with multi-stage timing control
• Pump control systems with advanced start/stop sequences

Advanced Timing Functions

• 13 different timing modes for comprehensive application coverage
• Delay on energization for start-up sequences
• Delay on de-energization for shutdown sequences
• Interval timing for cyclical operations
• Pulse timing for momentary control
• Flasher functions for signaling applications
• Star-delta timing for motor starting sequences
• Multi-function operations for complex control requirements

Installation Benefits

• Universal voltage compatibility with 12...240 V AC/DC range
• Clear status indication through integrated LED
• Secure connections with screw terminal design
• Extensive functionality with 13 selectable functions
• Reliable operation in demanding industrial environments
• Flexible configuration for various timing requirements
• Professional appearance maintaining system aesthetics
• Wide time range coverage from milliseconds to hours

Compatibility

• 12...240 V AC/DC power systems for versatile installation
• Industrial control panels with complex timing requirements
• Motor control circuits requiring sophisticated timing delays
• Process automation systems with sequential control
• Standard DIN rail mounting systems
• Control cabinet installations with advanced timing needs

Product Classifications

• Product Lifecycle: PM300 Active Product
• eClass: 27-37-16-05 (versions 8-14)
• ETIM: EC001439 (versions 7, 8 & 9)
• UNSPSC: 39-12-23-29

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 12.09.2014
• WEEE Take-Back Obligation: Yes

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w): Lead, Lead monoxide (lead oxide), and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol. Based on current information, these substances do not pose risk when used as intended, including disposal. Please refer to product documentation for additional guidance.
