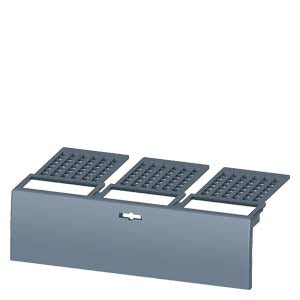

Siemens Terminal cover for plug-In and draw-out socket

Product Overview

The Siemens 3VA9163-0KB03 is a professional terminal cover designed specifically for plug-in and withdrawable socket configurations on 3-pole 3VA20/21/22 series molded case circuit breakers. This essential safety accessory provides complete protection of electrical connections while maintaining accessibility for maintenance operations. The lightweight yet durable construction ensures reliable performance in industrial and commercial electrical installations where terminal protection and operational safety are critical requirements.

Key Features

• Terminal Protection: Complete coverage and protection of electrical connections on plug-in and withdrawable socket configurations
• Series Compatibility: Specifically engineered for 3-pole 3VA20/21/22 series molded case circuit breakers
• Maintenance Access: Designed to facilitate convenient maintenance access while ensuring electrical safety standards
• Lightweight Design: At only 0.028 kg, provides protection without adding significant weight to the installation
• Quality Construction: Manufactured in Czech Republic with Siemens' renowned build quality and reliability standards
• Easy Installation: Simple mounting design for quick and secure attachment to circuit breaker sockets
• Compact Profile: Minimal space requirements with efficient 170 x 120 x 25 mm packaging dimensions

Technical Specifications

• Product Type: Terminal cover for plug-in and withdrawable sockets
• Application: 3-pole circuit breakers 3VA20/21/22 series
• Article Number: 3VA9163-0KB03
• Net Weight: 0.028 kg
• Packaging Dimensions: 170.00 x 120.00 x 25.00 mm
• Quantity Unit: 1 Piece
• Packaging Quantity: 1
• Country of Origin: Czech Republic
• EAN: 4042949012047
• UPC: 804766449451

Applications

This terminal cover is particularly suitable for:

• Industrial control panels with 3VA20/21/22 series circuit breakers
• Commercial electrical installations requiring terminal protection
• Plug-in circuit breaker configurations in switchgear
• Withdrawable socket applications in motor control centers
• Power distribution panels requiring maintenance accessibility
• Electrical enclosures with modular circuit breaker systems
• Manufacturing facilities with 3VA series protection equipment
• Building electrical systems using Siemens 3VA technology
• Infrastructure installations requiring terminal safety coverage
• Retrofit applications upgrading existing 3VA installations

Safety and Protection

The terminal cover ensures:

• Electrical Safety: Complete protection of live terminals from accidental contact
• Environmental Protection: Shields connections from dust, debris, and environmental contaminants
• Maintenance Safety: Provides safe access during service operations
• Code Compliance: Meets electrical safety standards for terminal protection
• System Integrity: Maintains proper electrical isolation and protection levels
• Installation Safety: Reduces risk during maintenance and service procedures

System Integration

The terminal cover integrates seamlessly with:

• 3VA20 Series: Low-voltage molded case circuit breakers
• 3VA21 Series: Medium-capacity industrial circuit breakers
• 3VA22 Series: High-performance circuit protection systems
• Socket Systems: Plug-in and withdrawable socket configurations
• Switchgear: Compatible with various switchgear architectures
• Control Systems: Integrates with industrial control and protection schemes

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2012
• WEEE Directive: No take-back obligation under directive 2012/19/EU
• REACH Regulation: Monitored according to current candidate list requirements
• Export Control: AL: N / ECCN: 9N9999
• Product Class: B - Return restricted, please contact your Siemens partner/contact

Product Classification

• eClass: 27-37-13-92 (versions 12, 14), 27-37-92-01 (versions 6-9.1)
• ETIM: EC002498 (versions 7-9)
• UNSPSC: 39-12-11-03
• Product Group: 5376
• Group Code: P360
