Siemens

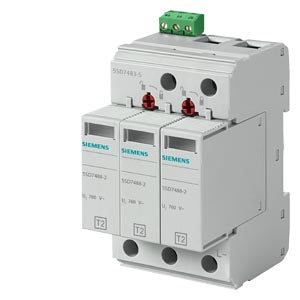

Siemens Surge arrester, pluggable, type 2, 3-pole, 750VAC

SKU / Article No. 5SD7483-5
Product Type Control Panel
Product Class Surge protection device for power supply systems
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

surge arrester, type 2, protective modules, plug-in, Uc 750 V AC, 3-pole, for 4-wire networks (L1, L2, L3, pen), with remote signaling, Surge protection devices for protecting against overvoltage in electrical systems. As an important component of the SENTRON protective components for electrical installations, the surge protection devices from Siemens provide effective protection in the event of lightning and overvoltage due to atmospheric influences or switching operations. User-friendly mounting and connection technology as well as an integrated design are the characteristics of the device family. Whether for infrastructure or for industrial requirements, Siemens provides surge protection devices for all applications and every application area. Key features of the Siemens surge protection devices: 1. Effective investment and plant protection against lightning and overvoltage. 2. The right lightning/overvoltage protection (type 1 to 3) for every use case. 3. Remote signaling contact to the external upload of the status display. 4. Reliable safety during installation due to standard reach-around and touch protection. 5. Removal from standardmounting rail without tools. 6. Clearly visible fault display. 7. The data matrix code on the front of the device provides quick and easy access to information on all aspects of lightning and overvoltage protection. 8. Optimized technology for your safety - only from Siemens.

Technical Specifications

IP RatingIP20
IP Rating DetailedIP20 shock acceleration 25 gn vibrational acceleration at 5 Hz 500 Hz limited to 2,5 h per axis 5 gn relative humidity during operation 5 95
Compliance/StandardsIEC 61643-11, EN 61643-11, IEC 61010-1
Part Width (mm)58,00mm
Part Height (mm)106,00mm
Part Depth (mm)78,00mm
Weight (g)0,417 Kg
descriptionSurge arrester, Type 2, pluggable protective modules, UC 750V AC, 3-pole, for 4-wire networks (L1, L2, L3, pen), with remote signaling
country_of_originGermany
