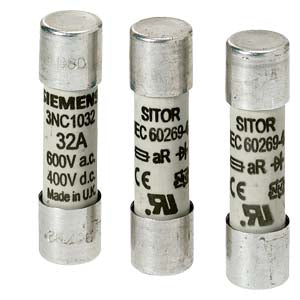

Siemens Sitor Cylindrical fuse link, 600V, 16A, 10 x 38mm

Product Overview

The Siemens 3NC1016 is a high-performance SITOR cylindrical fuse link designed specifically for semiconductor protection applications. This 16A rated fuse provides exceptional protection for AC circuits up to 600V and DC circuits up to 700V, featuring an aR operating class for full-range semiconductor protection. This ultra-fast acting fuse is engineered to protect sensitive power semiconductors and electronic components in demanding industrial applications.

Key Features:

• Rated current: 16A with aR operating class for semiconductor protection
• Enhanced voltage ratings: 600V AC / 700V DC (DC according to UL)
• Compact 10 x 38mm cylindrical design for space-efficient installations
• Ultra-fast acting switch-off characteristics compared to conventional LV HRC fuses
• SITOR technology specifically designed for power semiconductor protection
• UL approved for global applications
• IEC and CCC certified for worldwide use

Applications: Specifically designed for protecting high-quality devices and electronic components including semiconductor contactors, electronic relays (solid state), frequency converters with fuses in input and DC intermediate circuits, UPS systems, and soft-starters for motors up to 100A. Essential for applications requiring reliable protection of power semiconductors from short-circuit effects in industrial automation and power electronics systems.

Technical Advantages:

• Extremely fast-acting switch-off characteristic provides superior semiconductor protection
• Power semiconductors are reliably protected even during short-circuit conditions
• Siemens quality standard ensures excellent characteristic curve accuracy
• Global approvals (IEC, UL, CCC) enable worldwide application
• Compatible with LV HRC fuse bases, fuse switch disconnectors, and switch disconnectors with fuses
• Effective protection for personnel, equipment, and systems through reliable shutdown
• Superior performance in frequency converter and UPS system applications

Standards Compliance: Approved according to IEC and UL standards with CCC certification for global use. Part of the SENTRON protective component line ensuring compliance with international safety and performance standards for semiconductor protection applications.

Physical Specifications:

• Net weight: 0.009 kg
• Fuse dimensions: 10 x 38mm (0.4" x 1.5")
• Packaging dimensions: 10 x 35 x 10 mm
• Country of origin: India
• EAN: 4011209569911
• UPC: 754554950358

Environmental Compliance: RoHS compliant since July 1, 2006. WEEE (2012/19/EU) take-back obligation applies. Contains lead as disclosed under REACH Article 33 requirements. Standard product classification allows for returns within guidelines.

Shipping Details:

• Minimum order quantity: 10 pieces
• Product lifecycle: PM300 Active Product

Download existing graphical data for this product:

• Technical Data Sheet
• Product Specifications
• CAD Models (Login required)
• Product Details
