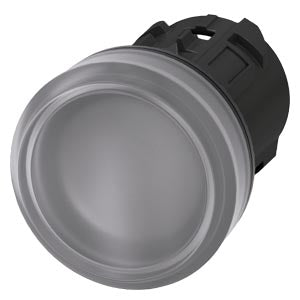

Siemens SIRIUS ACT Pilot light head, round, clear, 22mm cutout Part number 3SU1001-6AA70-0AA0

Product Overview

The Siemens SIRIUS ACT Pilot light head, round, clear, 22 mm cutout (3SU1001-6AA70-0AA0) is a durable and high-quality signaling component designed for industrial control panels and operator stations. It features a clear round lens, making it suitable for versatile indication functions when combined with compatible LED modules or light sources. Built with robust materials and offering high ingress protection, it ensures reliable performance even in harsh industrial environments.

Key Features

• Round pilot light head from the Siemens SIRIUS ACT range
• Standard 22 mm panel cutout for universal installation
• Clear lens for customizable illumination with LED or filament modules
• Rugged construction suitable for demanding industrial applications
• High ingress protection: IP66, IP67, and IP69K (depending on mounting and assembly)
• Compact and ergonomic design for modern control panel aesthetics
• Temperature-resistant materials for reliable operation under varying environmental conditions

Technical Specifications

• Product Series: SIRIUS ACT – 3SU1 Command and Signaling Devices
• Article Number: 3SU1001-6AA70-0AA0
• Mounting Cutout: 22.3 mm (standard panel hole)
• Head Shape: Round
• Lens Colour: Clear (transparent)
• Material: Plastic housing with durable lens assembly
• Protection Class: IP66 / IP67 / IP69K (assembled)
• Operating Temperature: –25 °C to +70 °C
• Storage/Transport Temperature: –40 °C to +80 °C
• Weight: Approx. 0.011 kg

Compliance & Certifications

• Manufactured by Siemens according to IEC/EN 60947-5-1 for pilot and indicator devices
• Part of the SIRIUS ACT modular command and signaling system
• Designed for applications requiring high durability and hygiene-compliant protection

Applications

Ideal for industrial control panels, operator consoles, and automation systems requiring visual indication of machine or process status. Commonly used in machinery, production lines, conveyor systems, packaging, and food-processing equipment where robust, clear-lens indication and reliability are essential.
