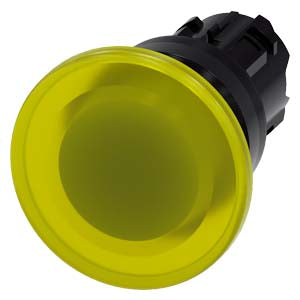

Siemens Sirius Act 3SU10 Pushbutton head, momentary, yellow, 22mm, IP66/67/69 Part number 3SU1001-1BD30-0AA0

Product Overview

The Siemens SIRIUS ACT 3SU1001-1BD30-0AA0 is a 22 mm round push-button actuator designed for industrial control-panel applications. It combines compact design with reliable operation, offering a standard modular mounting solution for machine-level operator interfaces in automation systems.

Key Features

• 22 mm cut-out diameter, round actuator design
• Momentary push-button operation (standard contact actuation)
• Touch-protected design for safe panel integration
• Halogen-free, silicone-free materials for industrial compliance
• Suitable for use in harsh environments with high ingress protection

Technical Specifications

• Product Series: Siemens SIRIUS ACT 3SU10
• Article Number: 3SU1001-1BD30-0AA0
• Mounting Size: 22 mm diameter front cut-out
• Actuator Diameter: 29.5 mm
• Operation Type: Momentary push-button
• Protection Class: IP66 / IP67 / IP69K (depending on installation)
• Mechanical Service Life (typical): 10 000 cycles
• Net Weight (Approx.): 0.015 kg

Compliance & Certifications

• Complies with IEC / EN standards for control-panel operators
• Halogen-free, silicone-free, suitable for industrial automation environments
• Designed for operator-interface applications in compliance with Siemens industrial quality standards

Applications

Ideal for use in control panels, machine-tool enclosures, automation cabinets and industrial switchgear where operator input or status-indication is required. The 3SU1001-1BD30-0AA0 provides a compact, rugged and compliant solution for interface elements in demanding environments.
