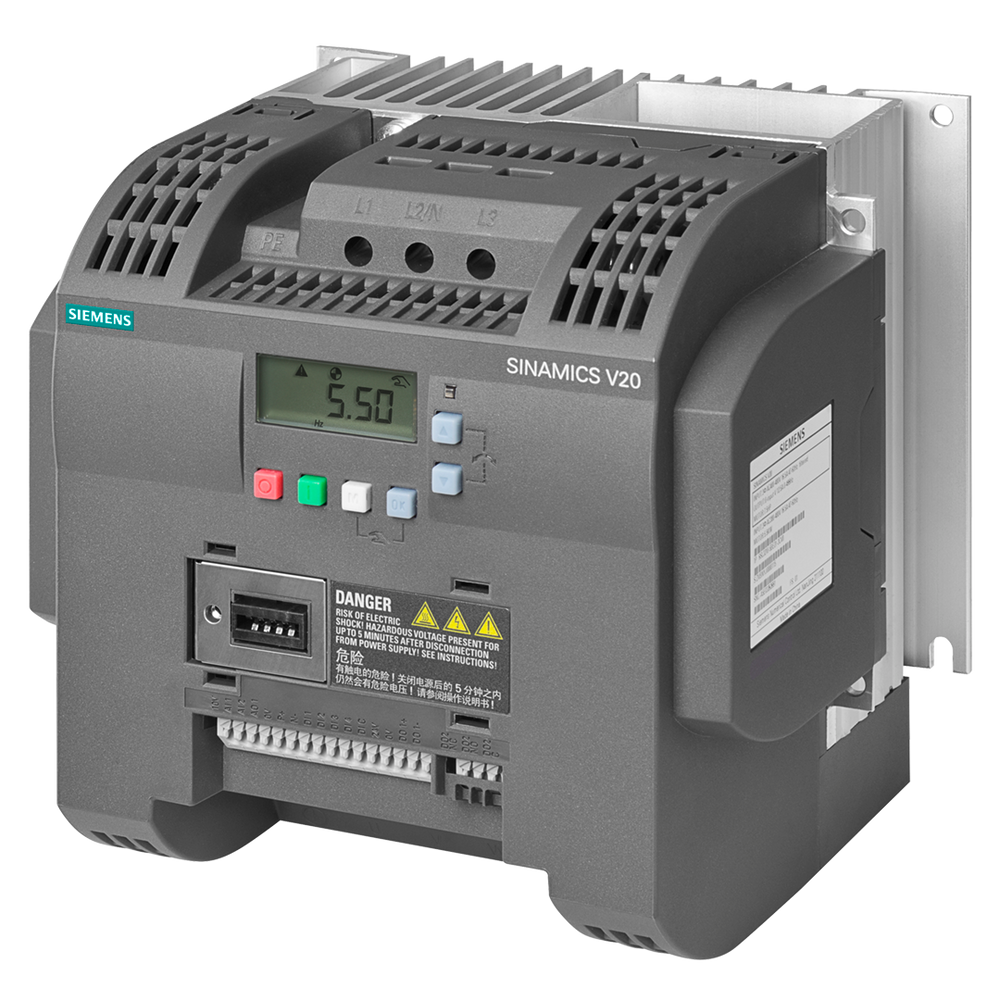

Siemens Sinamics V20 Inverter drive, 1-phase, 230V, 3kW Part number 6SL3210-5BB23-0UV0
Product Description
Intelligent SINAMICS drives are designed with an energy-saving function to optimise energy consumption when the application allows. Effective energy-saving is achieved through the ability to control or adjust the motor speed to suit the demand of the individual required process. The energy usage for turbomachine can be reduced by 60%.
Now equipped with PROFIenergy we now have full transparency of energy usage within the system components. This technology gives us the ability to further save energy by selective shutdowns of plants or plant sections. ECO mode Hibernation mode Cascading Energy balancing Energy usage counter / Energy saving counter
Technical Specifications
| Application in industrial area permitted | Yes |
| Compliance/Standards | EN 61800-3, EN 60204-1, EN 61800-5 |
| country_of_origin | China |
| Depth | 169 mm |
| description | SINAMICS V20 200-240 V 1-phase AC -10/+10 rated power 3.0 kW with 150% overload for 60 sec. unfiltered I/O: 4 DI, 2 DO,2 AI, 1 AQ fieldbus: USS/MODBUS RTU with built-in BOP degree of protection IP20/UL open size: C 184x182x169 (WxHxD) |
| Height | 182 mm |
| IP Rating | IP20 |
| IP Rating Detailed | IP20 |
| Mains voltage | 240 V |
| Max. output at linear load at rated output voltage | 3 kW |
| Max. output at quadratic load at rated output voltage | 3 kW |
| Max. output frequency | 550 Hz |
| Max. output voltage | 240 V |
| Nominal output current I2N | 13.6 A |
| Number of analogue inputs | 2 |
| Number of analogue outputs | 1 |
| Number of digital inputs | 4 |
| Number of HW-interfaces other | 1 |
| Number of HW-interfaces RS-232 | 1 |
| Number of HW-interfaces RS-485 | 1 |
| Number of phases input | 1 |
| Number of phases output | 3 |
| Part Depth (mm) | 247,00mm |
| Part Height (mm) | 220,00mm |
| Part Width (mm) | 237,00mm |
| Relative symmetric net frequency tolerance | -5 % |
| Relative symmetric net voltage tolerance | -10 % |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for other bus systems | Yes |
| Type of converter | U converter |
| Weight (g) | 2,500 Kg |
| Width | 184 mm |
