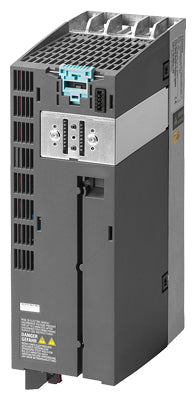

Siemens Sinamics PM240-2 Power module, unfiltered, 380 - 480V Part number 6SL3210-1PE11-8UL1

Product Overview

The Siemens 6SL3210-1PE11-8UL1 is a PM240-2 power module for the SINAMICS G120 inverter system. It provides variable-frequency drive capability for three-phase motors, offering a compact, modular solution that supports small motor loads and flexible industrial applications.

Key Features

• Sinamics G120 power module, PM240-2 series
• Input: 3-phase, 380–480 V AC ±10%, 47–63 Hz
• Output: 0.55 kW (low-overload mode), 400 V / 3 AC
• Built-in braking chopper (allows DC-braking without external resistor)
• Unfiltered version — suitable where built-in filter not required
• Compact frame size: FSA — space-efficient for control cabinets
• Cooling: internal air cooling (fan) — no external cooling equipment needed for standard conditions
• Overload capabilities — supports short-term overloads according to G120 LO/HO ratings
• Mounting via plug-in screw terminals, easy installation and wiring

Technical Specifications

• Article Number: 6SL3210-1PE11-8UL1
• Input Supply: 3 AC, 380–480 V ±10%, 47–63 Hz
• Rated Output Power (LO): 0.55 kW
• Rated Output Current (LO): 1.70 A
• Max Output Current: 2.60 A
• Frame Size: FSA
• Dimensions (HxWxD): 196 × 73 × 165 mm
• Ambient Operating Temperature: –10 °C … +40 °C (LO mode) / –10 °C … +50 °C (HO mode)
• Cooling Method: Internal air cooling
• Degree of Protection: IP20 (open-type unit — requires enclosure)
• Built-in Features: Braking chopper, plug-in screw terminals

Compliance & Standards

• Part of SINAMICS G120 inverter family — industrial-grade drive system
• Conforms to low-voltage and inverter standards for performance and safety
• Designed for use with appropriate control unit (control unit sold separately) to complete full inverter functionality

Applications

This power module is suitable for small three-phase motor drives — for example pumps, fans, conveyors, light machinery, or HVAC systems in industrial, commercial, or building-automation environments. It is especially useful when compact design, flexible installation, and braking capability are desired in a modular inverter setup.
