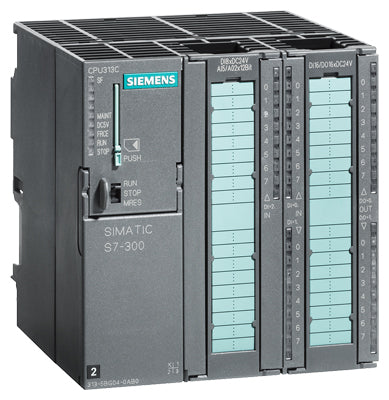

Siemens SIMATIC S7-300 CPU for S7-300, 24DI/16DO, analogue, 24VDC Part number 6ES7313-5BG04-0AB0

Product Overview

The Siemens 6ES7313-5BG04-0AB0 is a SIMATIC S7-300 CPU 313C, a compact programmable logic controller with integrated I/O, integrated 24 V DC power supply, high-speed counters, and MPI communication. With 24 digital inputs, 16 digital outputs, 4 analog inputs, 2 analog outputs and one Pt100 temperature input, it is designed for versatile automation tasks within the S7-300 modular control platform.

Key Features

• Compact S7-300 PLC with integrated power supply
• Integrated I/O: 24 digital inputs, 16 digital outputs
• Analog I/O: 4 analog inputs, 2 analog outputs
• Integrated Pt100 input for direct temperature measurement
• Three high-speed counters up to 30 kHz
• MPI communication interface
• Work memory of 128 kB
• Requires SIMATIC Micro Memory Card (MMC) for program backup

Technical Specifications

• Article Number: 6ES7313-5BG04-0AB0
• Product Type: SIMATIC S7-300 CPU 313C
• Supply Voltage: 24 V DC (19.2…28.8 V allowable)
• Integrated Digital I/O: 24 DI / 16 DO
• Integrated Analog I/O: 4 AI / 2 AO
• Temperature Input: 1 × Pt100
• High-Speed Counters: 3 × 30 kHz
• Memory: 128 kB work memory
• Interfaces: MPI communication interface
• Front Connectors: 2 × 40-pin connectors
• Power Loss (typical): approx. 12 W

Compliance & Certifications

• Manufactured under Siemens SIMATIC industrial automation standards
• Designed for reliable performance in industrial control applications

Applications

Used as a central controller for mid-range automation tasks in machine building, packaging, processing lines, conveyor systems and general industrial automation. Ideal where integrated I/O, temperature measurement, and high-speed pulse counting are required within a compact S7-300 system.
