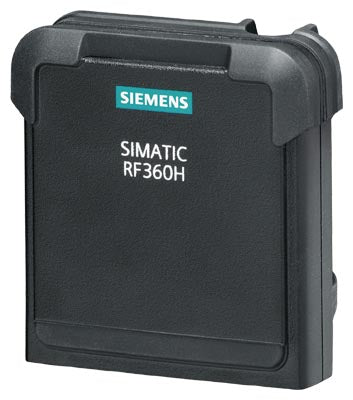

Siemens SIMATIC RF360H HF RFID Reader module Part number 6GT2803-1FA00

Product Overview

The Siemens 6GT2803-1FA00 is the SIMATIC RF360H HF RFID reader module with internal antenna, designed for use exclusively with the RF160B basic device (6GT2003-0FA00). It supports HF transponders (RF200/RF300) and is intended for industrial identification and locating tasks.

Key Features

• HF RFID reader module, internal antenna
• Designed for use only with the RF160B basic device
• Supports RF200 and RF300 transponder systems
• Operating frequency: 13.56 MHz
• Read range: up to 100 mm
• Transfer rate: up to 106 kbit/s
• Protection rating: IP65 for rugged industrial environments

Technical Specifications

• Article Number: 6GT2803-1FA00
• Product Type: SIMATIC RF360H HF RFID reader module (internal antenna)
• Compatible Basic Device: RF160B (6GT2003-0FA00)
• Operating Frequency: 13.56 MHz
• Max Read Range: approx. 100 mm
• Transfer Rate: max. 106 kbit/s
• Ambient Temperature (Operation): −20 °C to +50 °C
• Storage Temperature: −20 °C to +60 °C
• Protection Rating: IP65
• Dimensions (W × H × D): approx. 85 mm × 89 mm × 41 mm
• Net Weight: approx. 0.25 kg
• Product Lifecycle Status: Active product

Compliance & Certifications

• Conforms to ISO 15693, ISO 14443 and RF300-specific protocols
• RoHS compliant
• Designed for industrial RFID environments according to Siemens standards

Applications

The 6GT2803-1FA00 is used for high-performance HF RFID identification tasks, such as automation of material flow, logistics, production tracking and asset management, where it is paired with the RF160B device. Its compact, rugged design and internal antenna make it ideal for industrial settings where rapid, reliable tagging and reading of HF transponders is required.
