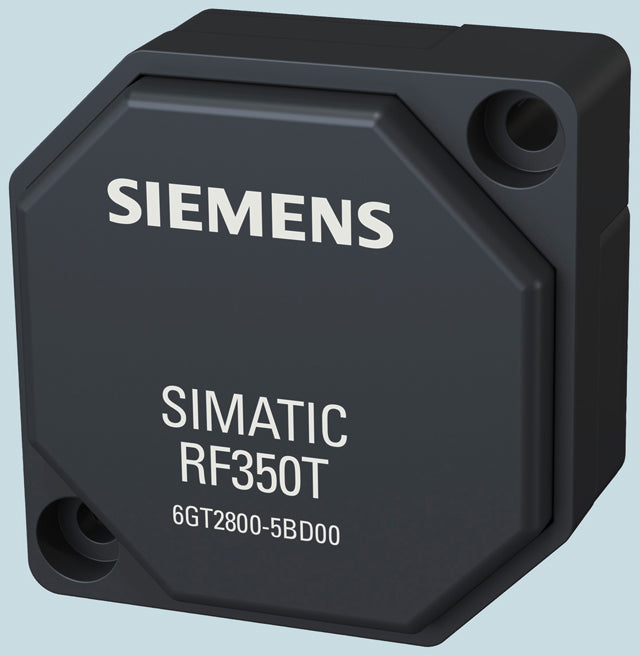

Siemens SIMATIC RF300 Transponder, 32KB FRAM, IP68 Part number 6GT2800-5BD00

Product Overview

The Siemens 6GT2800-5BD00 is a SIMATIC RF350T transponder from the RF300 RFID system family. It features 32 KB FRAM memory, a compact and robust housing, and an IP68 protection rating. Designed for industrial identification tasks, it offers high durability, long memory retention, and reliable performance in harsh operating environments.

Key Features

• SIMATIC RF300 series transponder (RF350T type)
• 32 KB FRAM user memory for frequent read/write operations
• High protection rating IP68 for harsh industrial conditions
• Compact design with mounting frame included
• Read/write capability at 13.56 MHz (RF300 protocol)
• High transfer rate up to 106 kbit/s
• Wide operating temperature range for robust industrial use
• Multitag-capable and silicon-free construction

Technical Specifications

• Article Number: 6GT2800-5BD00
• Product Family: SIMATIC Ident – RF300
• Transponder Type: RF350T
• User Memory: 32 KB FRAM
• Operating Frequency: 13.56 MHz
• Max Transfer Rate: 106 kbit/s
• Protection Rating: IP68
• Dimensions (W × H × D): approx. 50 × 50 × 20 mm (incl. mounting frame)
• Ambient Temperature (read/write): −25 °C to +85 °C
• Storage Temperature: −40 °C to +85 °C
• Memory Endurance: >10 billion read/write cycles
• Memory Retention: minimum 10 years (below 40 °C)
• Net Weight: approx. 25 g

Compliance & Certifications

• Manufactured under Siemens SIMATIC Ident quality standards
• RF300 protocol–compatible for industrial RFID systems
• IP68 environmental protection rating for immersion and dust resistance

Applications

The 6GT2800-5BD00 transponder is used for industrial RFID identification and tracking tasks, including production line control, material flow management, logistics tracking, container identification, and applications requiring high memory endurance and robust environmental performance.
