Product Overview

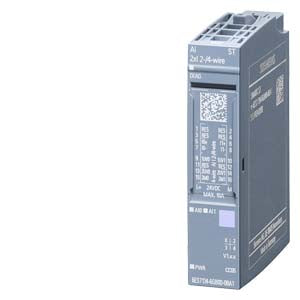

SIMATIC ET 200SP, Analog input module, AI 2xI 2-/4-wire Standard, Pack quantity: 1 unit, suitable for BU type A0, A1, Color code CC05, Module diagnostics, 16 bit

This reliable analog input module is designed for the SIMATIC ET 200SP distributed I/O system, providing standard current measurement capabilities. With 2 analog inputs supporting 2-wire or 4-wire configurations, it delivers consistent performance for industrial automation applications requiring current monitoring.

Key Features

• 2-Channel Current Measurement: Dedicated inputs for current signal processing with standard performance capabilities
• Flexible Wiring: 2-wire and 4-wire configurations accommodate various current transmitter types
• Standard Performance: Proven reliability with 0.05% accuracy for typical industrial applications
• Comprehensive Diagnostics: Wire break detection, overflow/underflow monitoring, and module status reporting
• Compact Design: 15mm width optimizes cabinet space while supporting 2 current channels
• Hot-Swap Capability: Module replacement without system shutdown for improved maintenance

Technical Specifications

• Input Channels: 2 analog inputs for current signals
• Resolution: 16-bit
• Accuracy: 0.05% basic accuracy
• Signal Range: Current measurement (4-20mA typical)
• Connection Options: 2-wire or 4-wire configurations
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC05
• Supply Voltage: 24V DC
• Current Consumption: 45 mA maximum
• Power Consumption: 1.1 W
• Step Response: 50ms at 60Hz, 60ms at 0Hz, 180ms at 16.6Hz

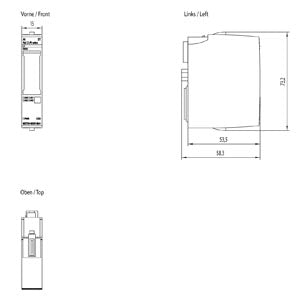

• Dimensions: 15mm (W) x 73mm (H) x 58mm (D)
• Operating Temperature: -30°C to +50°C (vertical), -30°C to +60°C (horizontal)
• Protection Rating: IP20
• Country of Origin: Germany

Applications

• Process control systems with current transmitters
• Flow, pressure, and level measurement applications
• Temperature monitoring with current output sensors
• Manufacturing equipment with current-based feedback signals
• HVAC systems with current output transmitters
• General industrial automation with standard current loops

System Integration & Benefits

• Easy Integration: Seamless compatibility with SIMATIC ET 200SP system requiring basic unit for mounting
• Proven Reliability: Standard performance class with established track record in industrial applications
• Cost-Effective: Balanced performance and cost for typical current measurement applications
• Maintenance-Friendly: Hot-swapping and comprehensive diagnostics reduce downtime
• ATEX Approved: Gas-ex-protection, Category 3G for hazardous area applications

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 01.12.2015
• WEEE Compliance: Yes
• ATEX Approval: Gas-ex-protection, Cat. 3G
• EAN: 4047623406655
• UPC: 804766232961

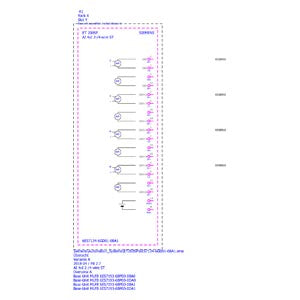

Download existing graphical data for this product:

Product Datasheet

Technical Manual

CAD Data and Dimensional Drawings

Product Certification
