Product Overview

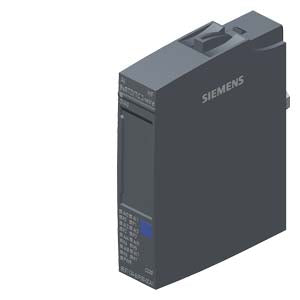

SIMATIC ET 200SP, Analog input module, AI 8xRTD/TC 2-wire High Feature suitable for BU type A0, A1, Color code CC00, channel diagnostics, 16 bit, +/-0.1%

This high-performance analog input module is specifically designed for the SIMATIC ET 200SP distributed I/O system. With 8 analog inputs, it facilitates precise temperature measurement and control in industrial applications, making it ideal for complex automation tasks requiring accurate temperature monitoring.

Key Features

• High Precision Temperature Measurement: 15-Bit + Sign Bit resolution with +/- 0.1 % Basic Error Limit ensures exceptional accuracy for critical temperature monitoring applications.
• Versatile Connectivity: 2-/3-/4- Wire connection options support various RTD (Resistance Temperature Detector) and thermocouple configurations, providing maximum flexibility for different sensor types.
• Advanced Diagnostics: Channel diagnostics capabilities enable proactive maintenance and system optimization through comprehensive monitoring of individual input channels.
• Compact Design: 15 mm Width, Single Unit construction optimizes cabinet space utilization while maintaining full functionality.
• Industrial Grade: Operating on a 24VDC supply voltage ensures compatibility with standard industrial power sources and robust performance in demanding environments.

Technical Specifications

• Input Channels: 8 analog inputs for RTD/TC sensors
• Resolution: 16-bit (15-bit + sign bit)
• Accuracy: ±0.1% basic error limit
• Connection Type: 2-wire, 3-wire, and 4-wire configurations
• Base Unit Compatibility: BU type A0, A1
• Color Code: CC00
• Supply Voltage: 24VDC
• Net Weight: 0.040 kg
• Dimensions: 6.80 x 7.80 x 2.70 cm
• Protection Rating: IP20
• Country of Origin: Germany

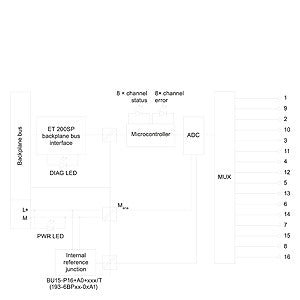

System Integration

It seamlessly integrates with the SIMATIC ET 200SP system, requiring a basic unit for mounting and termination. The module supports hot-swapping capabilities, allowing for maintenance without system shutdown. The system ensures maximum flexibility because you can quickly and simply replace modules at any time due to the multi hot swapping feature.

Applications

Ideal for industrial automation applications requiring precise temperature monitoring, including:

• Process control systems
• Manufacturing equipment monitoring
• HVAC systems
• Chemical processing plants
• Food and beverage production
• Pharmaceutical manufacturing

Compliance & Certifications

• Export Control: AL : N / ECCN : 9N9999
• RoHS Compliance: Since: 25.02.2014
• WEEE Compliance: Yes
• Product Lifecycle: PM300:Active Product
• Package Contents: 1 Analog Input Module
• EAN: 4047623403388
• UPC: 887621782672

Download existing graphical data for this product:

Product Datasheet

Technical Manual

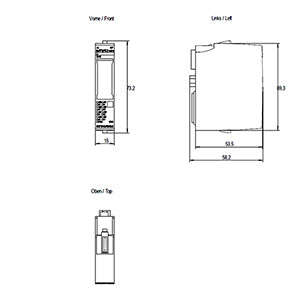

CAD Data and Dimensional Drawings
