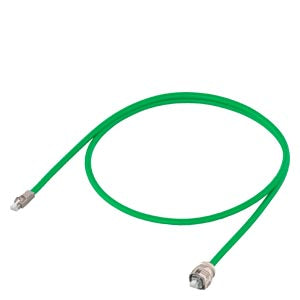

Siemens Signal cable pre-assembled, RJ45 IP20 on module side

SKU / Article No. Ford-6FX8002-2DC10-1CA0
EAN / Barcode - None -
Product Type Cable & Cable Management
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This DRIVE-CLiQ encoder cable with RJ45 connectors is designed for motor and module connections, supporting speeds up to 300 m/min. The green PUR sheath offers oil resistance, flame resistance, and flexibility, ideal for dynamic industrial applications requiring secure data connections.

Technical Specifications

Compliance / CertificationsCanada: CSA-C22.2-N.210.2-M90 / UL758 (USA)
Country of OriginGermany
FlammabilityEN 60332-1-1 to 1-3
Temperature: Operating-20°C to 60°C
Material: Insulation / Inner sheathCFC / Silicone-free
Material: Jacket / Outer SheathPUR
Bending RadiusFixed: 35 / Flexible: 75
Part Length (mm)20 000mm
Weight 3300g
Connection TypeBasis cable / RJ45 DRIVE-CLiQ
Test Voltage500 V (rms Signal conductors)
Voltage Range/Rating30 V
ColourGreen
RAL CodeRAL 6018
