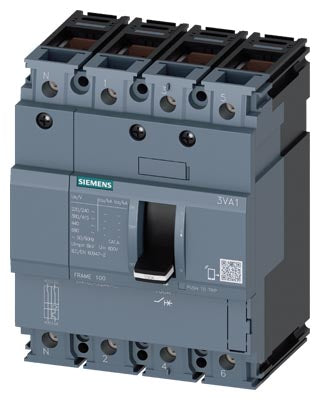

Siemens SENTRON MCCB, fixed mount, 4-pole, 25A, 25kA breaking capacity Part number 3VA1025-3ED46-0AA0

Product Overview

The Siemens 3VA1025-3ED46-0AA0 is a SENTRON 3VA1 series molded-case circuit breaker with a 4-pole configuration and a rated o perational current of 25 A. It belongs to the IEC Frame 100 family and offers breaking capacity class N with an Icu of 25 kA at 415 V, delivering reliable protection for industrial and commercial low-voltage distribution systems.

Key Features

• 4-pole molded-case circuit breaker from the Siemens SENTRON 3VA1 series
• Rated current (In): 25 A
• Breaking capacity class N – Icu = 25 kA at 415 V
• Designed for line protection (TM210) with fixed short-circuit release of approximately 12.8 × In
• Rated insulation voltage: 800 V and operational voltage up to 690 V AC
• Box terminal connection on both sides for convenient wiring
• Compact yet robust design for fixed mounting in electrical distribution boards and switchgear

Technical Specifications

• Product Series: SENTRON 3VA1
• Article Number: 3VA1025-3ED46-0AA0
• Number of Poles: 4 P
• Rated Operational Current (In): 25 A
• Rated Operational Voltage (Ue): Up to 690 V AC
• Rated Insulation Voltage (Ui): 800 V AC
• Breaking Capacity (Icu): 25 kA at 415 V AC
• Short-Circuit Release (Fixed): ~12.8 × In
• Power Loss (Max): 8.5 W
• Protection Class (Front): IP40
• Ambient Operating Temperature: –25 °C to +70 °C

Compliance & Certifications

• Manufactured under Siemens SENTRON series quality standards
• Complies with IEC/EN 60947-2 for low-voltage circuit-breakers
• Breaking capacity class N suitable for demanding industrial applications

Applications

Ideal for use in fixed-mounted distribution boards, switchgear and motor control centres where reliable protection of 3 phase circuits is required. Well suited for feeders, branch circuits and installations requiring 4-pole protection and high breaking capacity in a compact footprint.
