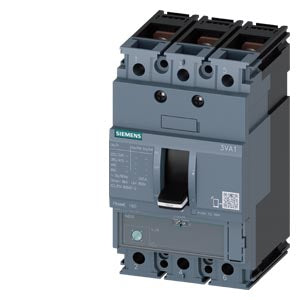

Siemens Circuit breaker, 160 breaking capacity, 3-pole, 36kA/ 415V

Product Overview

Circuit breaker 3VA1 IEC Frame 160 breaking capacity class S Icu=36 kA @ 415 V 3-pole, line protection TM220, ATFM, In=40 A overload protection Ir=28 A...40 A short-circuit protection Ii=10 x In nut keeper kit.

Article Number: 3VA1140-4EE32-0AA0

Technical Specifications

Product Lifecycle: PM300:Active Product

Net Weight: 0.9145 kg

Packaging Dimensions: 92.00 x 150.00 x 116.00 mm

Quantity Unit: 1 Piece

Packaging Quantity: 1

EAN: 4042948812433

UPC: 804766425240

Country of Origin: Czech Republic

Compliance Information

Export Control Regulations: AL : N / ECCN : N

RoHS Compliance: Since 01.04.2014

Product Class: B: return restricted, please contact your Siemens partner/contact

WEEE Take-Back Obligation: Yes

REACH Article 33: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classification Standards

• eClass: 27-37-04-09
• ETIM: EC000228
• UNSPSC: 39-12-16-01

Download existing graphical data for this product:

Technical Datasheet (PDF)
