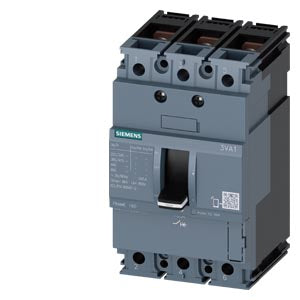

Siemens Circuit breaker, 3VA1 IEC frame, 160 breaking capacity

Product Overview

Circuit breaker 3VA1 IEC Frame 160 breaking capacity class N Icu=25 kA @ 415 V 3-pole, line protection TM210, FTFM, In=80 A overload protection Ir=80 A permanently set short-circuit protection Ii=10 x In nut keeper kit.

Article Number: 3VA1180-3ED32-0AA0

Technical Specifications

Product Lifecycle: PM300:Active Product

Net Weight: 0.916 kg

Packaging Dimensions: 92.00 x 150.00 x 116.00 mm

Quantity Unit: 1 Piece

Packaging Quantity: 1

EAN: 4042948812648

UPC: 804766423437

Country of Origin: Czech Republic

Compliance Information

Export Control Regulations: AL : N / ECCN : N

RoHS Compliance: Since 01.04.2014

Product Class: C: products manufactured / produced to order, which cannot be reused or re-utilized or be returned against credit.

WEEE Take-Back Obligation: Yes

REACH Article 33: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0.1% weight by weight (w/w): Lead. Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classification Standards

• eClass: 27-37-04-09
• ETIM: EC000228
• UNSPSC: 39-12-16-01

Download existing graphical data for this product:

Technical Datasheet (PDF)
