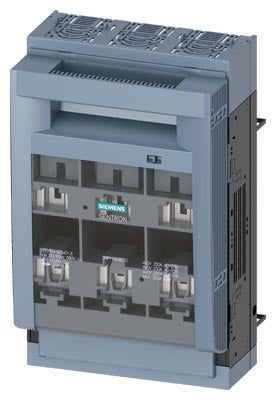

Siemens Sentron Fuse switch disconnector, NH00, 3-pole, 160A
View on Siemens 📄 Datasheet
Siemens

Siemens Sentron Fuse switch disconnector, NH00, 3-pole, 160A Part number 3NP1133-1CA10

EAN / Barcode 4011209700239
Product Type Control Panel
Product Class Fuse switch disconnector
ETIM Class Fuse switch disconnector
Out of Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

SENTRON, Fuse switch disconnector 3NP1

The SENTRON 3NP1 fuse switch disconnector provides enhanced protection for personnel and plants with a user-friendly connection system.

Technical details:

  • Type: Fuse switch disconnector 3NP1
  • Poles: 3-pole
  • Size: NH00
  • Current: 160 A
  • Mounting: For assembly and installation on mounting plate
  • Terminal: Flat terminal
  • Cover level: 45 mm
  • Current range: Up to 630 A
  • Protection degree: IP40
  • Flexible switching times of the auxiliary switch are possible
  • Electronic fuse monitoring function
  • Reach-round and touch protection incorporated as standard

Customer benefits:

  • Enhanced protection for personnel and plants
  • User-friendly connection system
  • Optional line monitoring
  • Prevents users from touching current conducting parts
  • Available in 1-, 3- and 4-pole versions
  • Optimized technology for safety

Technical Specifications

Cable entryOther
Conditioned rated short-circuit current Iq80 kA
Degree of protection (IP), front sideIP40
Max. rated operation voltage Ue AC690 V
Number of poles3
Position control elementFront side
Rated permanent current Iu160 A
Suitable for floor mountingYes
Suitable for fusesNH000, NH00
Type of control elementCover grip
Type of electrical connection of main circuitRail connection
Version as safety switchYes
View complete specifications on Siemens
