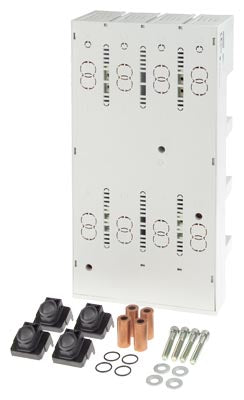

Siemens Sentron Device adapter MCCB, 4-pole, 250A Part number 8US1313-4AH03

Product Overview

The Siemens 8US1313-4AH03 is a device adapter for a molded-case circuit breaker (MCCB) from the SENTRON 8US1 busbar system. It offers a 4-pole configuration rated at 250 A and is designed to interface with the 3VA12 series circuit breakers.

Key Features

• 4-pole busbar adapter for the SENTRON 8US1 system
• Rated current: 250 A
• Compatible with 3VA12 MCCB devices
• Busbar centre-to-centre spacing of 60 mm
• Supporting busbar thicknesses from 5 mm up to 10 mm
• Compact width for panel installation

Technical Specifications

• Product Series: SENTRON 8US1 Busbar System Accessories
• Article Number: 8US1313-4AH03
• Number of Poles: 4
• Rated Current (In): 250 A
• Busbar Centre-to-Centre Spacing: 60 mm
• Busbar Thickness (suitable): 5…10 mm
• Width of Adapter: 140 mm
• Height: 270 mm
• Depth: 35 mm
• Net Weight (Approx.): 1.53 kg

Compliance & Certifications

• Designed for use within Siemens low-voltage busbar and circuit-breaker systems
• Manufactured under Siemens quality standards with country of origin Germany

Applications

The 8US1313-4AH03 adapter is used in industrial distribution and switchgear installations to adapt a 3VA12 MCCB into the 8US1 busbar system. It provides robust 250 A current handling, a 4-pole layout for full three-phase plus neutral connection, and compatibility with compact panel layouts requiring 60 mm busbar spacing.
