Product Overview

Industrial Ethernet Switch for Manufacturing and Automation Applications

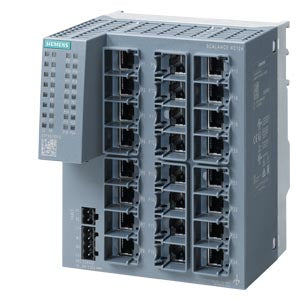

The SCALANCE XC124 is an unmanaged Industrial Ethernet switch engineered for robust performance in demanding industrial environments. This compact 24-port switch delivers reliable 10/100 Mbps connectivity with advanced diagnostic capabilities, making it ideal for machine-level applications requiring dependable network infrastructure.

Key Features

24-Port Connectivity: Features 24 x 10/100 Mbps RJ45 ports for extensive network connectivity, supporting line or star topologies with seamless switching functionality for industrial automation systems.

Advanced Diagnostics: Integrated LED diagnostics provide real-time visual status monitoring for easy troubleshooting and network management. Error-signaling contact with set pushbutton enables remote monitoring and quick fault identification.

Redundant Power Supply: Built-in redundant power supply ensures maximum uptime and reliability for critical industrial applications, with 24V DC supply voltage and 2/4-pole terminal block connectivity.

Industrial-Grade Construction: Designed with IP20 protection rating and rugged enclosure suitable for control cabinet installation, featuring metal back and plastic housing for durability in industrial environments.

Technical Specifications

Network Performance:

• 24 x 10/100 Mbps RJ45 ports
• Auto-negotiation and Auto-MDI/MDIX
• Store-and-forward switching
• Non-blocking switching architecture

Physical Specifications:

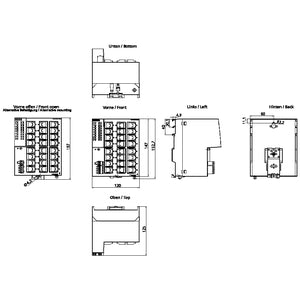

• Dimensions: 120mm (W) × 147mm (H) × 125mm (D)
• Weight: 1.032 kg
• Mounting: DIN rail (top hat rail) or wall mounting
• Degree of Protection: IP20

Environmental Conditions:

• Operating Temperature: -40°C to +70°C
• Storage/Transport Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration and Shock: Compliant with industrial standards

Power Supply:

• Supply Voltage: 24V DC
• Power Consumption: Low power consumption for energy efficiency
• Connection: 2/4-pole terminal block
• Redundant power supply for enhanced reliability

Applications

Perfect for industrial networking applications including:

• Manufacturing automation and control systems
• Machine-level network infrastructure
• Process control and monitoring systems
• Factory floor communication networks
• Industrial IoT device connectivity
• SCADA and HMI system integration

Certifications & Compliance

Industrial Approvals:

• ATEX Zone 2 and IECEx certified for hazardous area applications
• E1 approval for public transportation vehicles
• Marine certifications for shipbuilding applications
• RoHS compliant for environmental standards

EMC Compliance:

• EN 61000-6-3 (Residential, commercial environments)
• EN 61000-6-4 (Industrial environments)
• Meets stringent industrial electromagnetic compatibility requirements

Environmental Compliance

Export Control: AL: N / ECCN: 9N9999

REACH Regulation: This product contains the following substances in concentrations higher than 0.1% weight by weight:

• Lead
• Lead monoxide (lead oxide)
• 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol

Based on current information, these substances do not pose risks when used as intended, including disposal.

WEEE Compliance: Subject to take-back obligation under 2012/19/EU directive.

Package Information

Identifiers:

• EAN: 4047622311998
• UPC: 804766320583
• Net Weight: 1.032 kg
• Package Dimensions: 60.0 × 124.0 × 125.0 mm
• Country of Origin: Germany

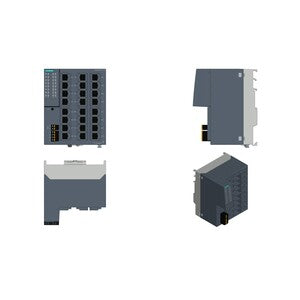

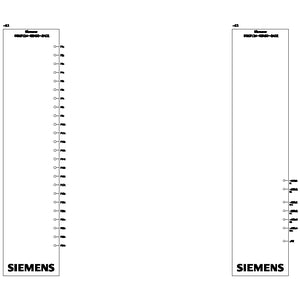

Download existing graphical data for this product:
