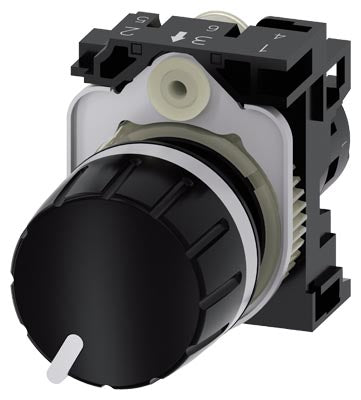

Siemens Rotary potentiometer, screw, panel mount, Ø22mm, 3m Part number 3SU1200-2PW10-1AA0

Product Overview

The Siemens 3SU1200-2PW10-1AA0 is a compact 22 mm panel-mount potentiometer from the SIRIUS ACT series. It has a resistance value of 2.2 kΩ and features screw-terminal connections and a smooth rotary actuator. Designed for industrial panel applications, it allows precise analog adjustment in control and automation systems, with a robust front protection rating for harsh environments.

Key Features

• 22 mm round panel-mount potentiometer
• Resistance value: 2.2 kΩ
• Screw terminal connection
• Approx. 280° rotation angle for fine control
• High front protection rating: IP66 / IP67 / IP69K
• Designed for use in industrial panel and machine environments
• Compact and durable SIRIUS ACT design

Technical Specifications

• Article Number: 3SU1200-2PW10-1AA0
• Product Family: SIRIUS ACT
• Device Type: Panel-mount potentiometer
• Resistance: 2.2 kΩ
• Mounting Diameter: 22.3 mm
• Operating Angle: approx. 280°
• Rated Insulation Voltage (Ui): 500 V
• Ambient Operating Temperature: -25 °C to +70 °C
• Mechanical Service Life: approx. 25,000 operating cycles

Compliance & Certifications

• Designed according to Siemens SIRIUS ACT standards for industrial control components
• Suitable for harsh industrial environments with high dust and moisture exposure
• Complies with relevant industrial panel mounting and electrical safety standards

Applications

This potentiometer is commonly used in industrial control panels, automation systems, machine control interfaces and instrumentation applications where manual adjustment of an analog value is required, such as speed control, setpoint adjustments or signal tuning in industrial environments.
