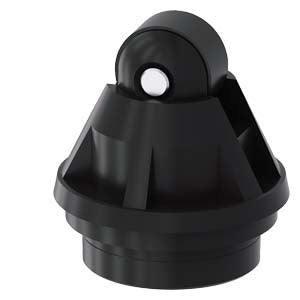

Siemens Roller plunger actuator head for 3SE5 limit switch Part number 3SE5000-0AD03-1AJ0

Product Overview

Actuator head for position switch 3SE51/52 featuring roller plunger with plastic roller 10mm, designed for functional operation at -40°C. This professional-grade actuator head provides precise position sensing and monitoring capabilities for machine parts and protection equipment in extreme environmental conditions, with plug-mounted design for easy replacement and maintenance.

Technical Specifications

Article Number: 3SE5000-0AD03-1AJ0

Design Characteristics:

• Application: Position switch 3SE51/52
• Actuator type: Roller plunger
• Roller material: Plastic
• Roller diameter: 10mm
• Operating temperature: Functional at -40°C
• Mounting: Plug-mounted design
• Series: SIRIUS 3SE5

Design Features:

• Plastic roller construction for reduced wear
• 10mm roller diameter for precise actuation
• Extreme temperature functionality (-40°C)
• Plug-mounted design for easy replacement
• Uniform interface compatibility
• Enhanced corrosion protection
• Shock and impact tested
• Insensitive to oil, grinding dust, ice and coarse-grained material

Application Areas:

• Position sensing of machine parts
• Position monitoring of protection equipment
• Wind energy plants
• Food and beverage industry
• Railway applications
• Extreme environmental conditions
• Safety circuit applications
• Industrial automation systems

Physical Properties:

• Net weight: 0.017 kg
• Roller diameter: 10mm
• Packaging dimensions: 90.00 x 96.00 x 24.00 mm
• Packaging quantity: 1 piece
• Country of origin: Germany

Product Identifiers:

• EAN: 4011209822160
• UPC: 662643851649

Compliance & Environmental:

• RoHS Compliance: Since 01.07.2006
• WEEE Take-Back Obligation: No
• REACH Regulation: No substances of very high concern identified

Standards Compliance:

• IEC certified
• UL certified
• CSA certified
• CE marked
• PL e safety requirements capable
• SIL 3 safety requirements capable

Download existing graphical data for this product:

• Technical Datasheet (PDF)
• 3D CAD Models
• Product Details - Industry Mall
