Product Overview

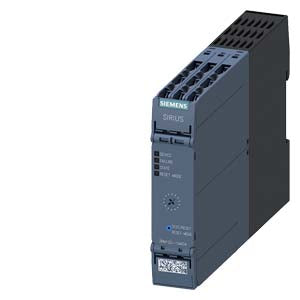

Reversing starter, 3RM1, 500 V, 0.55 - 3 kW, 1.6 - 7 A, 24 V DC, screw terminals

This SIRIUS 3RM1 reversing starter (Article Number: 3RM1207-1AA04) is a compact, intelligent motor starter that combines multiple functions in a single 22.5 mm wide enclosure. The device features hybrid switching technology with electronic overload protection, providing efficient and reliable bidirectional control for three-phase motors up to 3 kW. With its 500 V rating and adjustable current range of 1.6 to 7 A, this reversing starter offers excellent performance for medium-power motor applications requiring direction change capability.

Key Features

• Compact 22.5 mm width for space-efficient installation
• Reversing starter configuration for bidirectional motor control
• High power capability up to 3 kW motor rating
• Electronic overload protection with Class 10A characteristics
• Hybrid switching technology combining relay contacts and power semiconductors
• LED diagnostics for fast error identification
• Test/reset button for easy operation and maintenance
• Energy efficient design with reduced power consumption
• Screw terminals for main and control circuits
• DIN rail mounting for standard panel installation
• Wide current setting range from 1.6 to 7 A

Technical Specifications

• Net Weight: 0.327 kg
• Packaging Dimensions: 36.00 x 109.00 x 167.00 mm
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece
• Country of Origin: Germany
• Rated Voltage: 500 V
• Power Rating: 0.55 - 3 kW
• Current Range: 1.6 - 7 A (adjustable)
• Control Voltage: 24 V DC
• Protection Class: IP20
• Width: 22.5 mm
• Overall Length: 141.6 mm
• Short Circuit Rating: 60 kA (480 V AC; UL489/CSA rating)
• Connection Type: Screw-clamp connections

Applications

• Heavy-duty conveyor systems requiring bidirectional operation
• Large machine tools with reversing motor requirements
• Industrial material handling equipment needing forward/reverse control
• Manufacturing machinery with directional control needs
• Process control applications requiring medium-power motor reversal
• Pumping systems with reversible flow requirements
• Mixing and agitation equipment needing bidirectional operation

Advanced Features

• Solid-state overload relay for precise motor protection
• Fast diagnostics with LED status indication
• Reduced wiring requirements for simplified installation
• Multifunctional design combining multiple protection functions
• Innovative enclosure concept with labeled cover caps
• Removable terminals for easy maintenance
• Reversing capability with integrated direction control
• Interlocking protection to prevent simultaneous forward/reverse operation
• Higher current capacity for demanding applications

Safety Features

• Electronic interlocking prevents simultaneous activation of forward and reverse contactors
• Overload protection for each direction of rotation
• Short circuit protection with integrated circuit breaker
• Thermal monitoring for motor protection
• Enhanced protection for higher power applications

Product Classifications

• Product Lifecycle: PM300 Active Product
• eClass: 27-37-09-05 (versions 6-14)
• ETIM: EC001037 (versions 7, 8 & 9)
• UNSPSC: 39-12-15-21

Compliance & Certifications

• Export Control: AL: N / ECCN: N
• RoHS Compliance: Since 01.03.2017
• WEEE Take-Back Obligation: Yes
• Certifications: CCC, CSA, UL, EAC, ATEX available

REACH Compliance

Information obligation imposed by Article 33, REACH Regulation: This product includes articles containing substances from the candidate list in concentrations higher than 0.1% weight by weight (w/w): Lead, Lead monoxide (lead oxide), 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one, and 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol. Based on current information, these substances do not pose risk when used as intended, including disposal. Please refer to product documentation for additional guidance.
