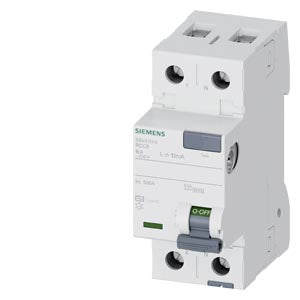

Siemens Residual current circuit breaker, 2-pole, 230VAC

Product Overview

The Siemens 5SV4111-0 is a high-performance residual current circuit breaker designed for enhanced protection against electric shock in specialized applications requiring ultra-high sensitivity. This 2-pole RCCB features a 16 A current rating with 230 V operational voltage and ultra-sensitive 10 mA residual current detection, making it ideal for protecting personnel and property from even the smallest earth leakage currents in critical applications such as medical facilities, laboratories, and sensitive electronic environments.

Key Features

• 10 mA Ultra-High Sensitivity: Provides maximum protection against dangerous residual currents for critical applications
• 2-Pole Configuration: Comprehensive protection for single-phase systems with line and neutral monitoring
• Type AC Characteristic: Optimized for standard AC residual current detection in specialized installations
• 16 A Current Rating: Suitable for lighting circuits and specialized equipment requiring enhanced protection
• Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
• German Engineering: Manufactured in Germany ensuring premium quality and reliability

Technical Specifications

• Current Rating: 16 A
• Voltage Rating: 230 V AC
• Residual Current Sensitivity: 10 mA
• Number of Poles: 2
• Type: AC
• Net Weight: 0.198 kg
• Packaging Dimensions: 97.00 x 42.00 x 85.00 mm
• Country of Origin: Germany
• EAN: 4001869429755

Applications

This ultra-sensitive residual current circuit breaker is particularly suitable for:

• Medical facility electrical installations
• Laboratory and research equipment protection
• Sensitive electronic equipment circuits
• Computer and data center installations
• Precision instrumentation circuits
• Swimming pool and spa electrical systems
• Wet area installations requiring enhanced protection
• Critical process control systems
• Clean room electrical installations
• Specialized industrial applications

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2006
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Contains lead and lead monoxide in concentrations higher than 0.1% w/w as per Article 33 requirements
• Export Control: AL: N / ECCN: 9N9999
• Product Class: A - Standard product with standard return guidelines

Product Classification

• eClass: 27-14-22-01 (versions 6-14)
• ETIM: EC000003 (versions 7-9)
• UNSPSC: 39-12-16-01
• Product Group: 5510
