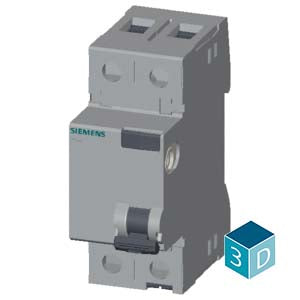

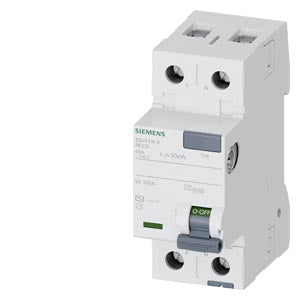

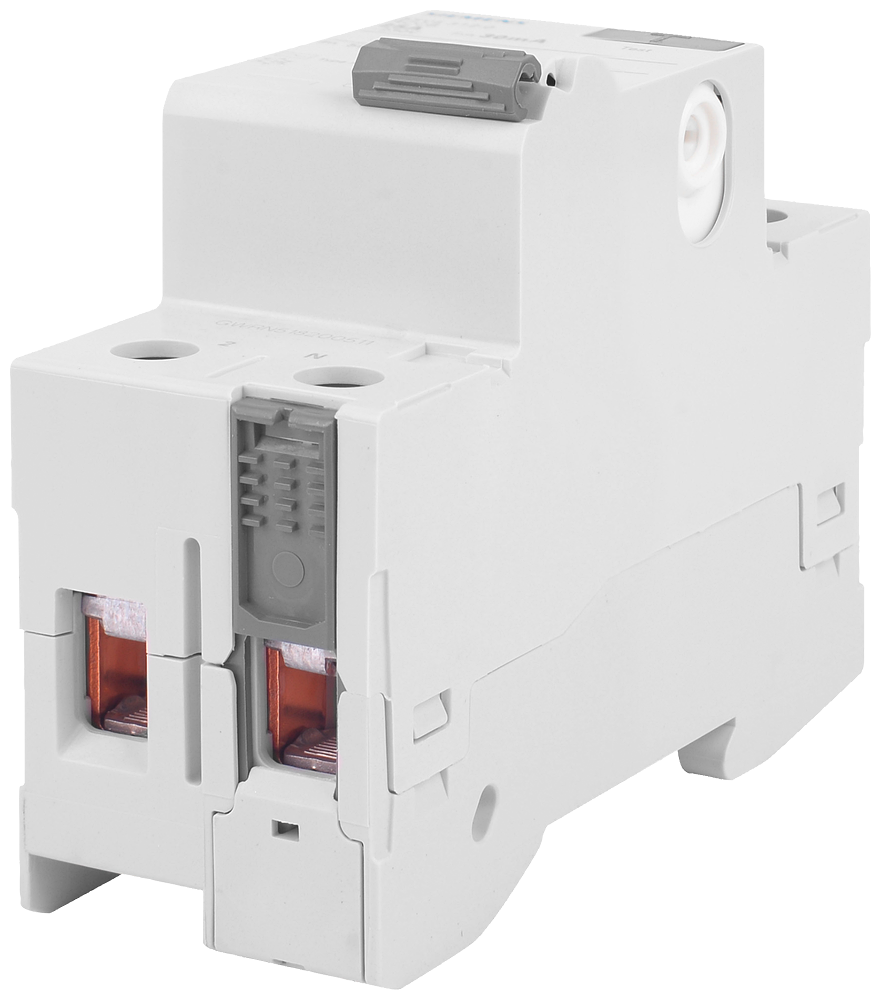

Siemens RCCB, 2-pole, 230VAC, 30mA, 40A Part number 5SV4314-0

Product Overview

The Siemens 5SV4314-0 is a high-performance residual current circuit breaker designed for comprehensive protection against electric shock in residential and commercial applications. This 2-pole RCCB features a 40 A current rating with 230 V operational voltage and 30 mA residual current sensitivity, making it ideal for protecting personnel and property from dangerous earth leakage currents and electrical fires in single-phase electrical installations.

Key Features

• 30 mA High Sensitivity: Provides rapid disconnection for personal protection against dangerous residual currents
• 2-Pole Configuration: Comprehensive protection for single-phase systems with line and neutral monitoring
• Type AC Characteristic: Optimized for standard AC residual current detection in residential applications
• 40 A Current Rating: Suitable for medium to high-load residential and light commercial circuits

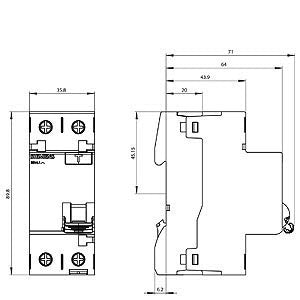

• Compact Design: Space-efficient construction suitable for standard DIN rail mounting (D=70 mm)
• German Engineering: Manufactured in Germany ensuring premium quality and reliability

Technical Specifications

• Current Rating: 40 A
• Voltage Rating: 230 V AC
• Residual Current Sensitivity: 30 mA
• Number of Poles: 2
• Type: AC
• Net Weight: 0.187 kg
• Packaging Dimensions: 97.00 x 42.00 x 85.00 mm
• Country of Origin: Germany
• EAN: 4001869429786

Applications

This residual current circuit breaker is particularly suitable for:

• Residential electrical installations
• Bathroom and kitchen circuit protection
• Outdoor electrical circuits
• Swimming pool and wet area protection
• Workshop and garage electrical systems
• Small commercial electrical installations
• General socket circuit protection
• Lighting circuit protection with earth leakage risk
• Appliance circuit protection
• Garden and outdoor lighting systems

Compliance & Certifications

• RoHS Compliance: Compliant since June 1, 2006
• WEEE Directive: Subject to take-back obligations under directive 2012/19/EU
• REACH Regulation: Contains lead and lead monoxide in concentrations higher than 0.1% w/w as per Article 33 requirements
• Export Control: AL: N / ECCN: 9N9999
• Product Class: A - Standard product with standard return guidelines

Product Classification

• eClass: 27-14-22-01 (versions 6-14)
• ETIM: EC000003 (versions 7-9)
• UNSPSC: 39-12-16-01
• Product Group: 5510

Download existing graphical data for this product:

• Product Datasheet
• Installation Manual
• SENTRON Product Catalog
• Technical Documentation
