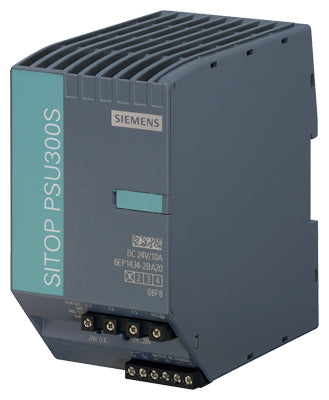

Siemens Power supply, stabilized, 24VDC, 10A
View on Siemens 📄 Datasheet
Siemens

Siemens Power supply, stabilized, 24VDC, 10A Part number 6EP1434-2BA20

EAN / Barcode 4025515154044
Product Type Control Panel
Product Class DC-power supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

This SITOP PSU300S power supply provides a stabilized 24 V DC output with a current of 10 A. It is designed for 3-phase AC input ranging from 400 to 500 V, suitable for industrial control systems requiring reliable 24 V DC power.

Technical Specifications

1st secondary output voltage24 V
Built-in height225 mm
Built-in width70 mm
Compliance/Certifications**cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) / cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) / cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; EN 55022 Class B / EN 61000-3-2 / EN 61000-6-2 / R-41183539
Degree of protection (IP)IP20
Depth120 mm
Height125 mm
IP Rating / DetailedIP20
Max. output current 110 A
Modular versionYes
Nominal value output current 110 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Part Depth (mm)120mm
Part Height (mm)70mm
Part Width (mm)70mm
Power output240 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz400 V
Rated supply voltage AC 60 Hz500 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Supply Voltage400 to 500 V
Temperature: Operating-25°C to 70°C
Type of electric connectionScrew connection
Voltage Output24 V
Voltage type (supply voltage)AC
Weight (g)700g
Width70 mm
View complete specifications on Siemens
