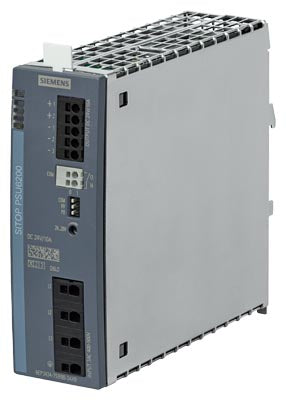

Siemens Sitop PSU6200 stabilized power supply, 24V, 10A Part number 6EP3434-7SB00-3AX0

Product Overview

The Siemens 6EP3434-7SB00-3AX0 is a SITOP PSU6200 series DIN-rail power supply that delivers a regulated 24 V DC output at 10 A (240 W nominal). It is designed for industrial automation systems requiring a highly reliable, compact power solution with diagnostic capability and a wide input voltage range for three-phase AC or DC networks.

Key Features

• SITOP PSU6200 industrial power supply unit
• Wide input range: 3-phase AC 400…500 V or DC 450…600 V
• Output: 24 V DC, 10 A nominal (240 W)
• Adjustable output voltage: 24…28 V
• Integrated diagnostic relay contact (24 V OK)
• Very high efficiency of up to 95.4%
• Compact housing width: 45 mm for space-saving DIN-rail installation
• Designed for continuous industrial operation

Technical Specifications

• Article Number: 6EP3434-7SB00-3AX0
• Series: SITOP PSU6200
• Input Voltage (AC): 400…500 V, 50/60 Hz
• Input Voltage (DC): 450…600 V DC
• Output Voltage: 24 V DC (adjustable to 28 V)
• Rated Output Current: 10 A
• Nominal Output Power: 240 W (up to approx. 288 W up to +45 °C)
• Efficiency: approx. 95.4%
• Mounting: 35 mm DIN rail (EN 60715)
• Dimensions (W × H × D): approx. 45 mm × 135 mm × 155 mm
• Ambient Temperature: −30 °C to +70 °C (derating above +45 °C)
• Protection Rating: IP20

Compliance & Certifications

• Designed and manufactured according to Siemens industrial automation standards
• CE, UL and IEC compliant for use in industrial control systems
• Galvanically isolated input and output
• EMC compliant for industrial automation environments

Applications

This power supply is ideal for industrial control panels, machine automation systems, distributed I/O stations, and manufacturing equipment where a stable and efficient 24 V DC power source is required. It is especially suited for compact panels, PLC systems, and OEM applications where reliability and space efficiency are critical.
